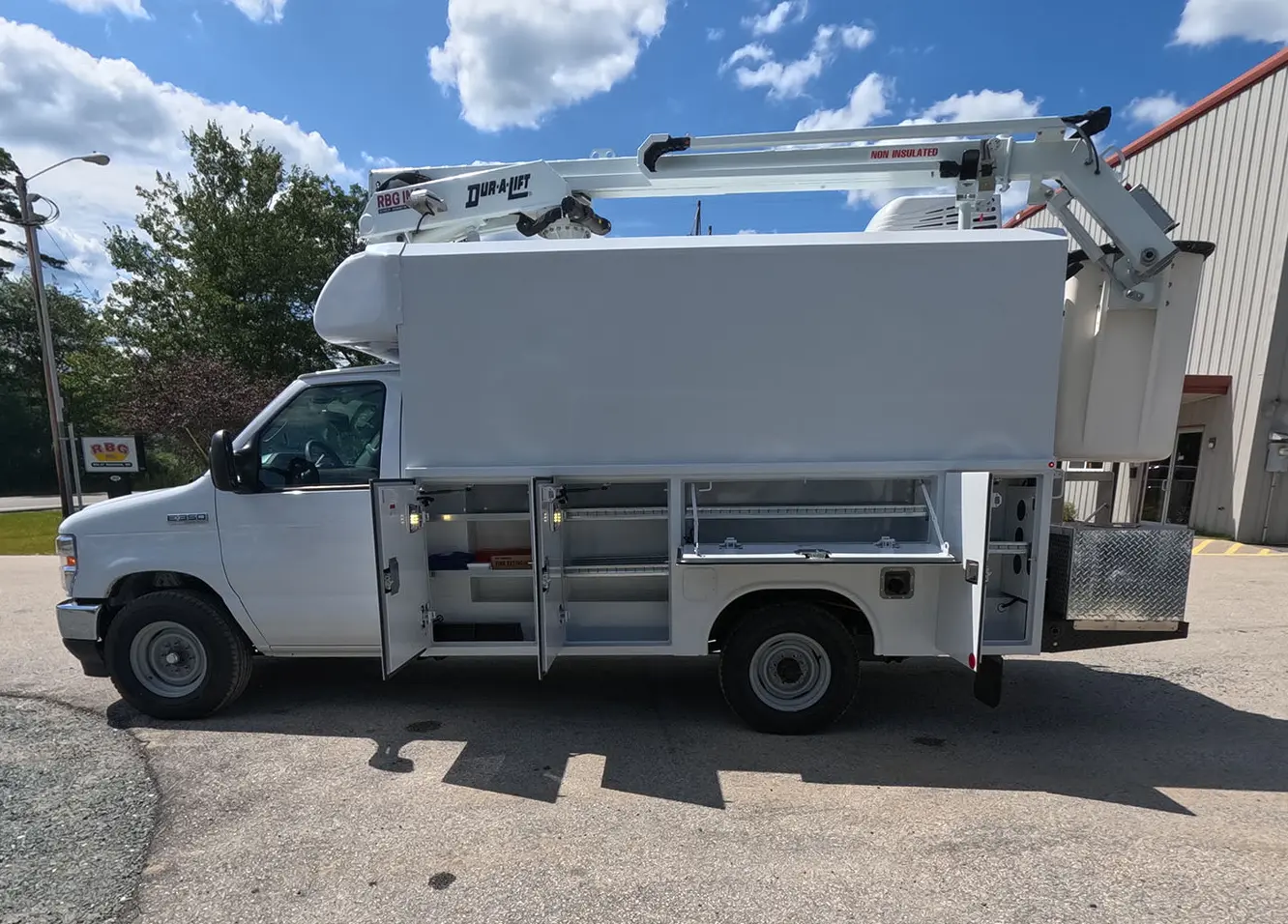

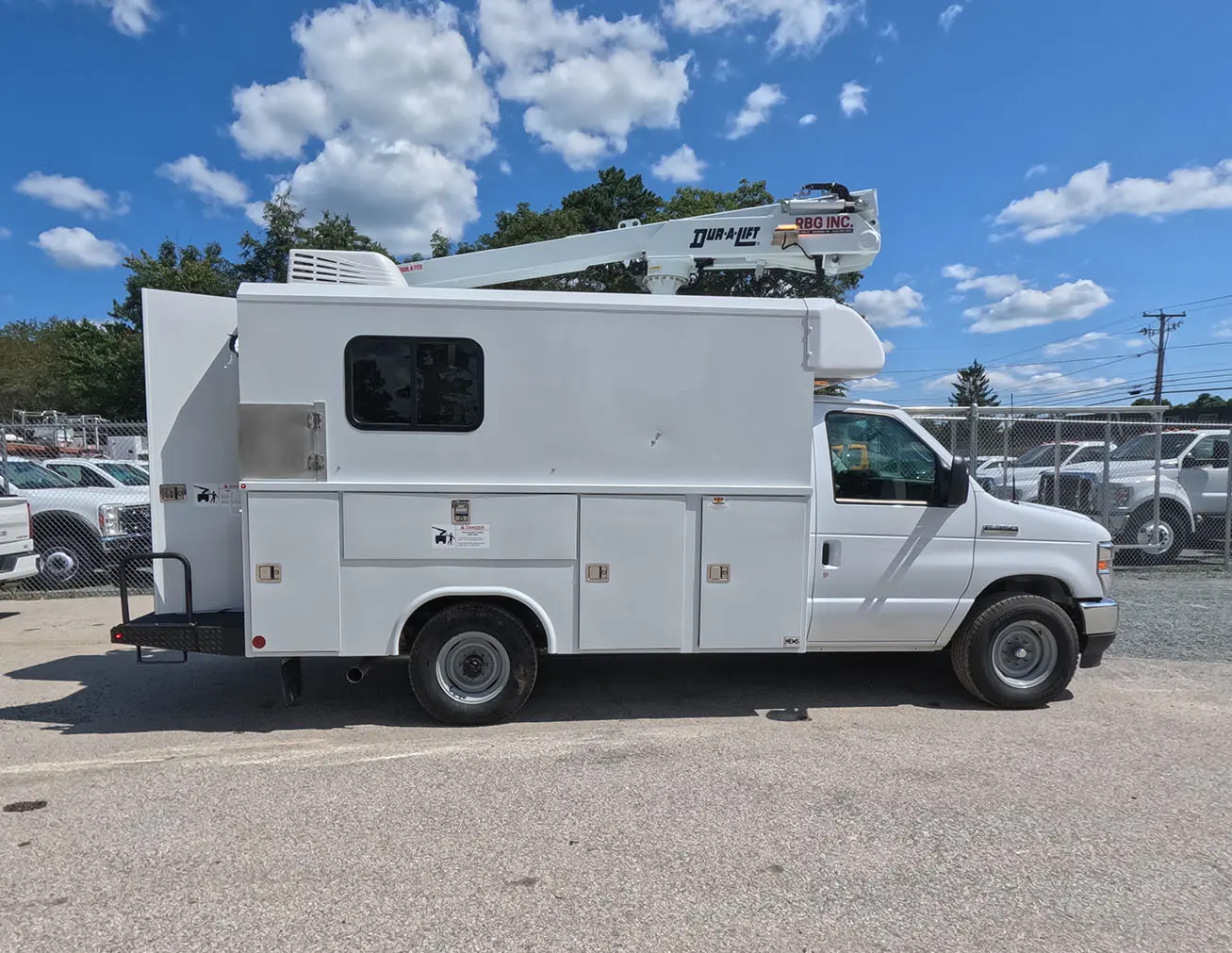

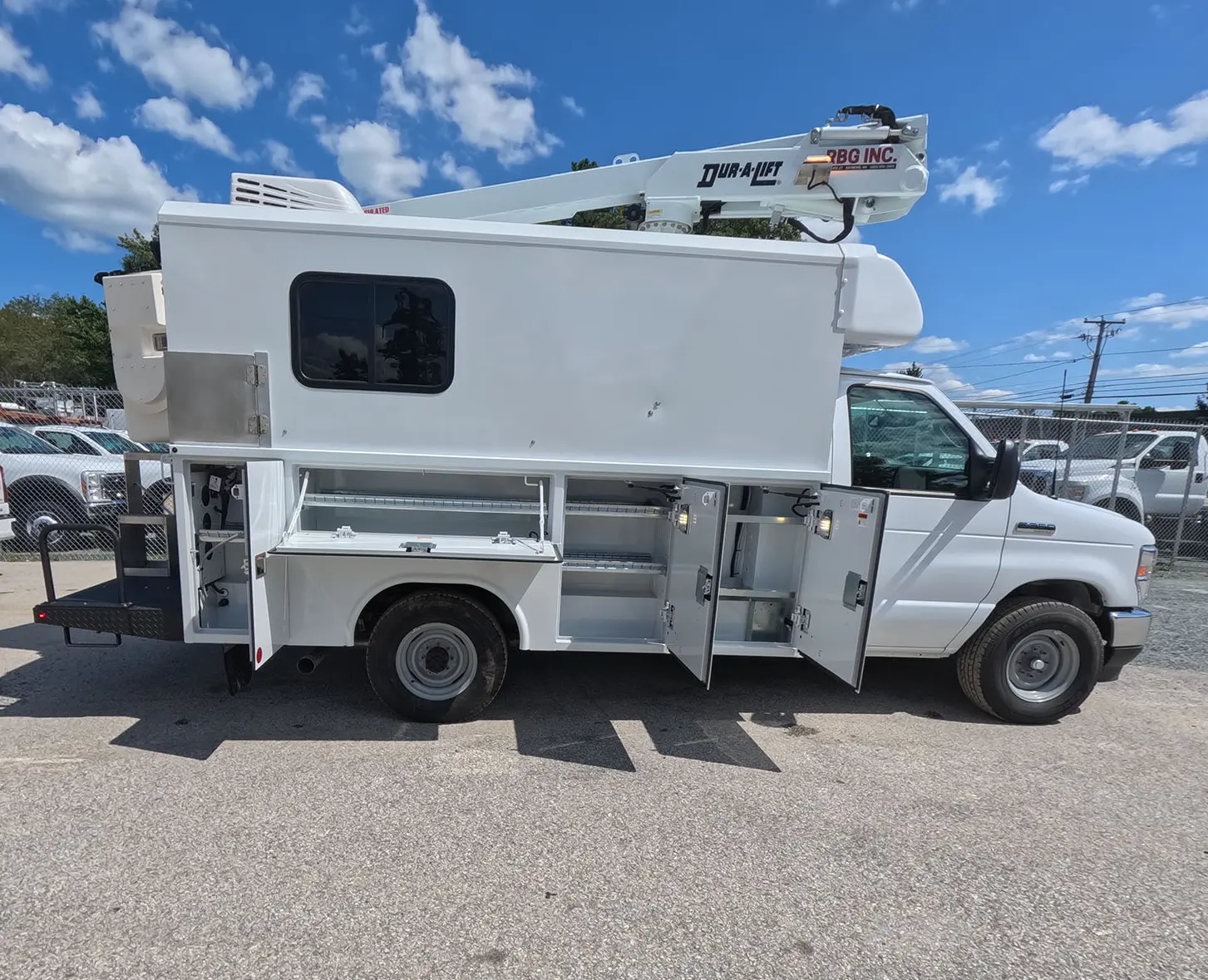

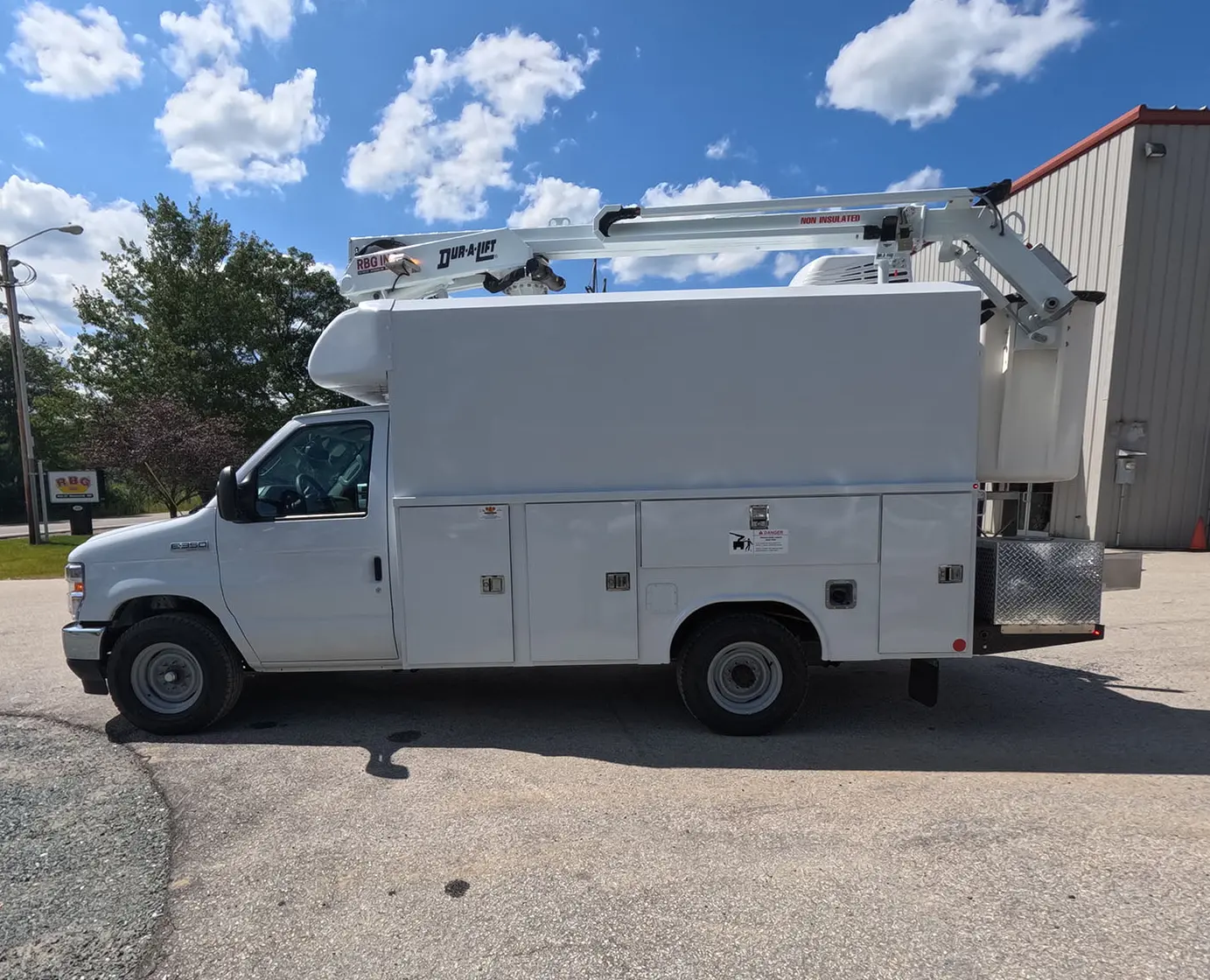

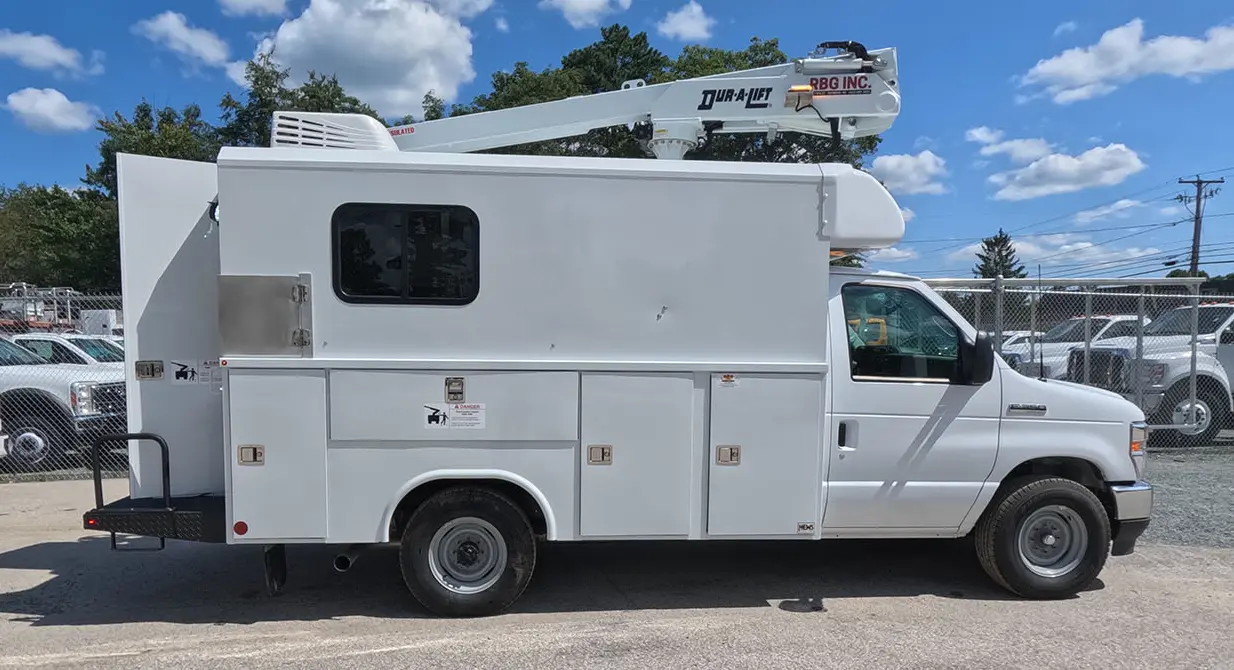

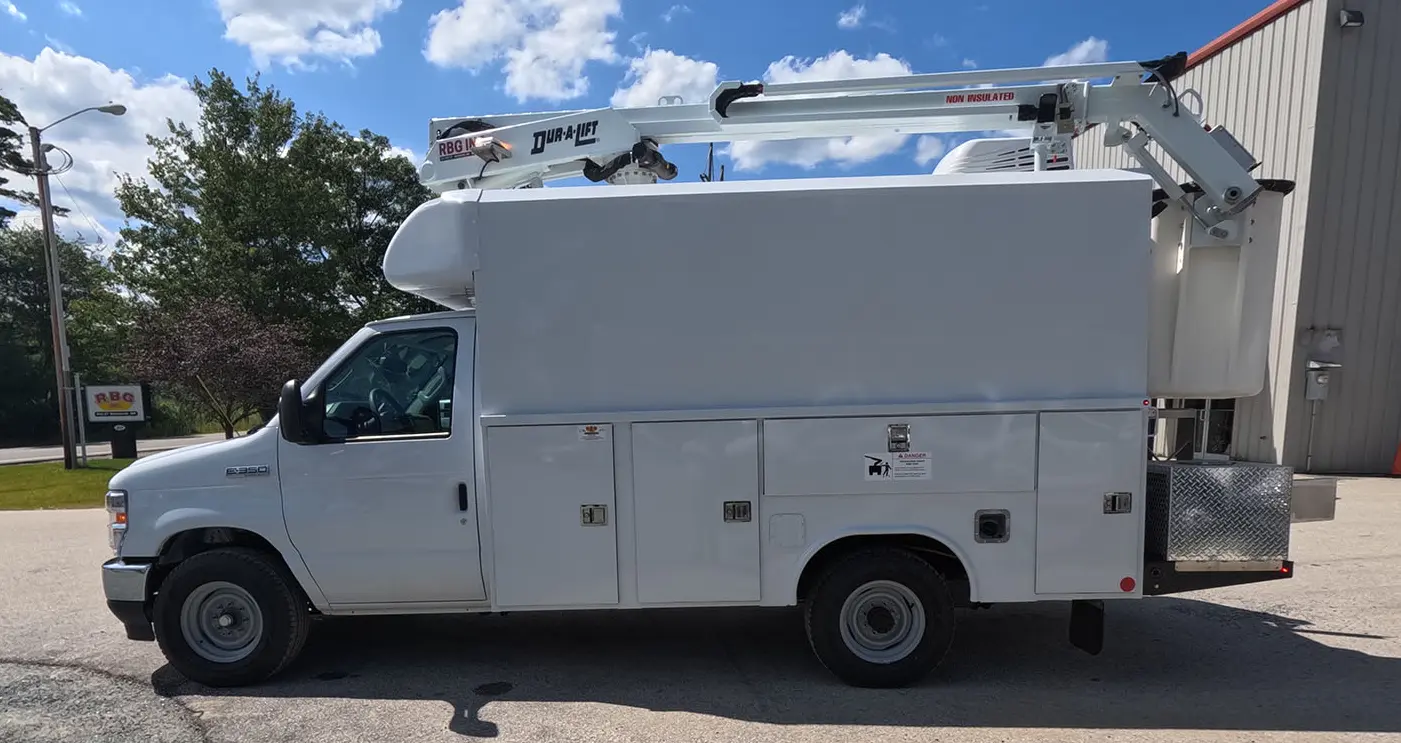

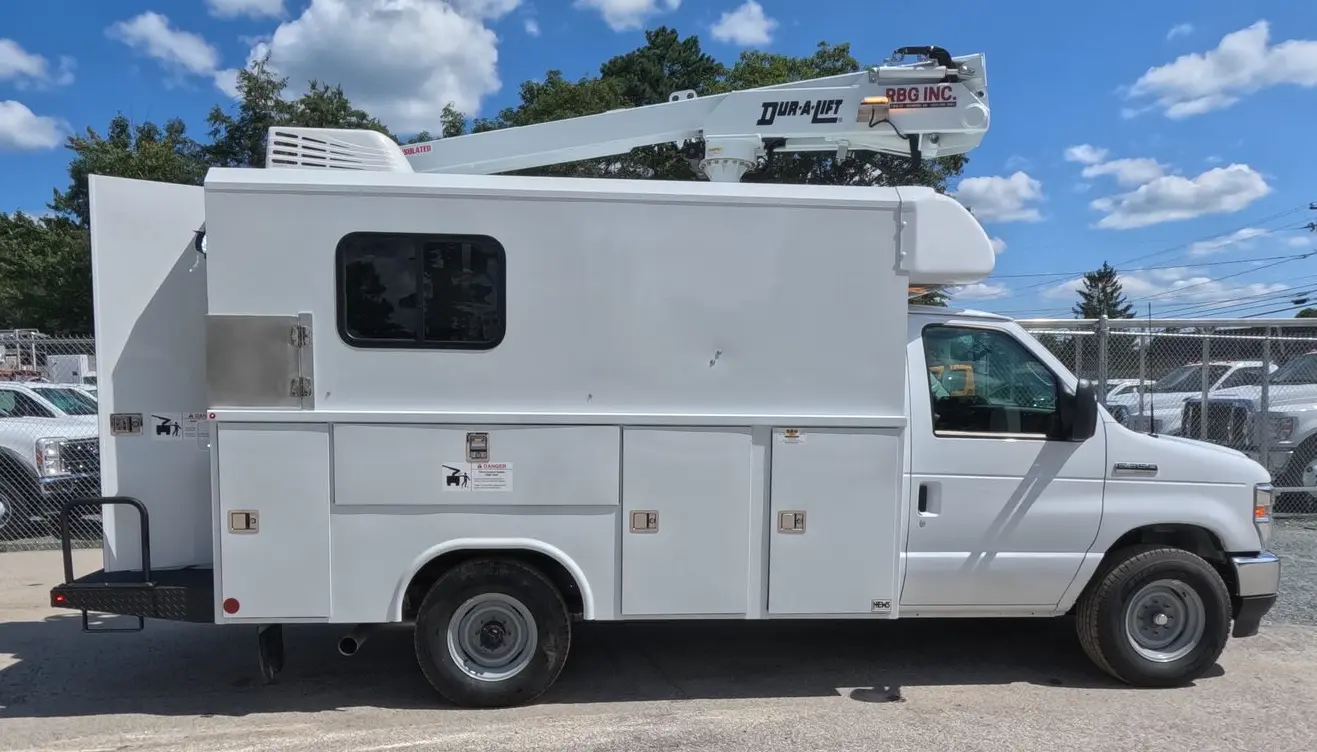

DVS-29 30’ telescopic aerial, insulated

• Pedestal Riser
• 30’ of platform height
• 35’ of working height
• 21’ side reach
• Platform capacity of 350 lbs.

Bucket Configuration:

• 24” x 24” x 42”
• End hung bucket
• Walk thru bucket with door
• Electric Controls
• Emergency Power
• Engine Start/Stop
• 370-degree non-Continuous rotation.
• Open center hydraulic system
• Non-relube bearings used throughout.
• Integral hydraulic oil reservoir with dual sight gauges
• Emergency Power Insulated 12V DC hydraulic system.
• Master / Slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue.
• Lower remote controls mounted in rear compartment
• Upper boom storage cradle with ratchet type tie down strapand tubular rubber platform support.
• Body harness and lanyard.
• Standard white urethane paint.
• Two operator’s manuals and two service manuals.
• ANSI A92.2 Data plate.
• Internal hydraulic tank
• Generator driven hydraulic pump
• Open circuit operation
• Emergency Brake Interlock

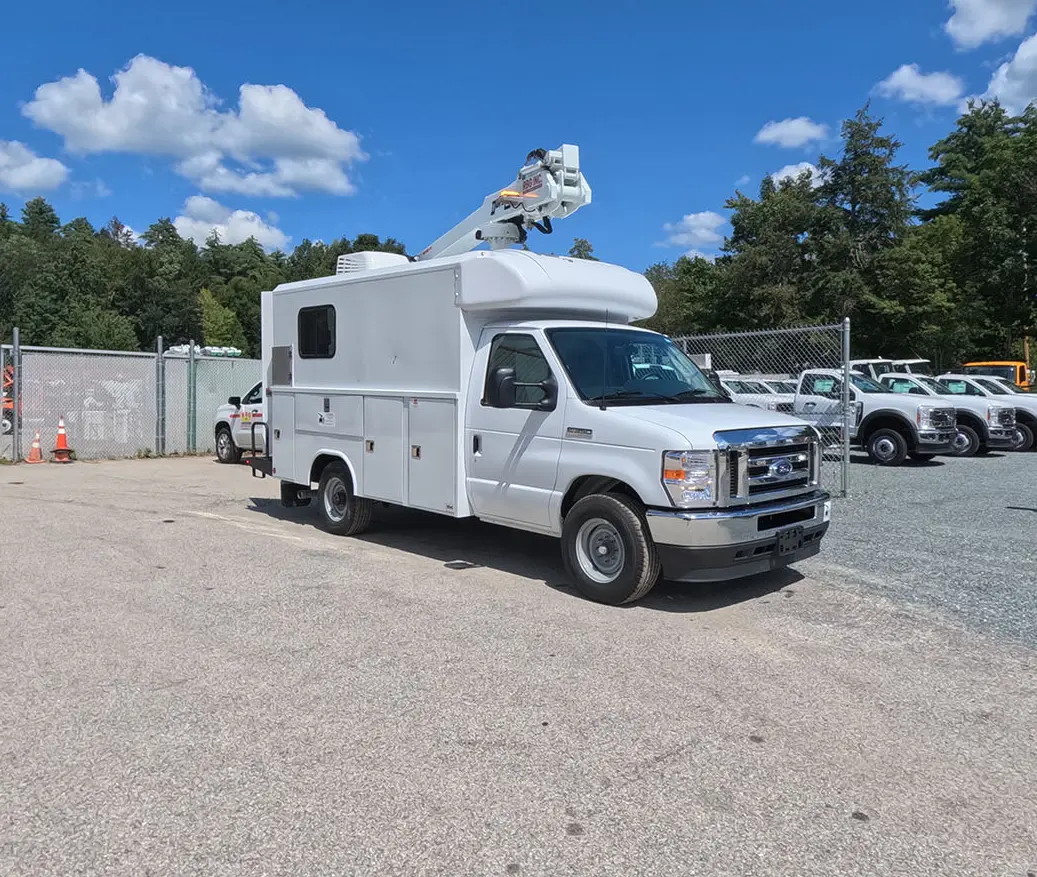

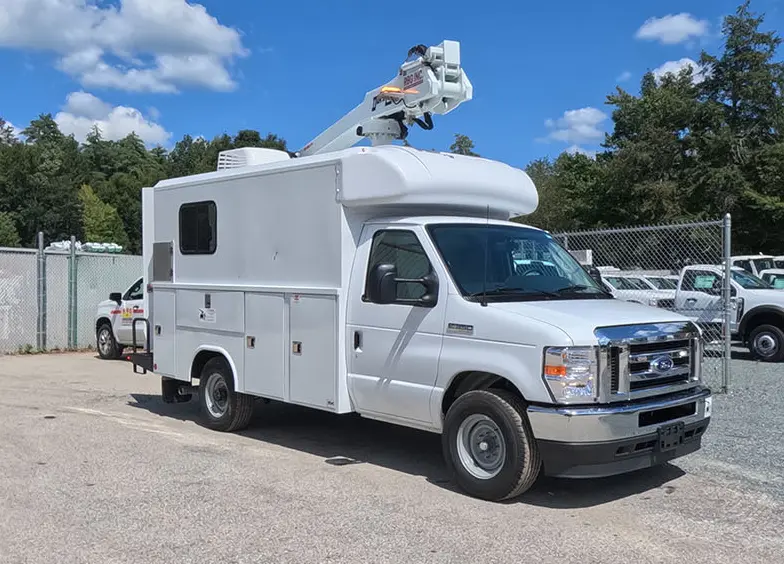

2023 Ford E350

• Gas engine
• Single rear tire axel

• 10,500 GVW

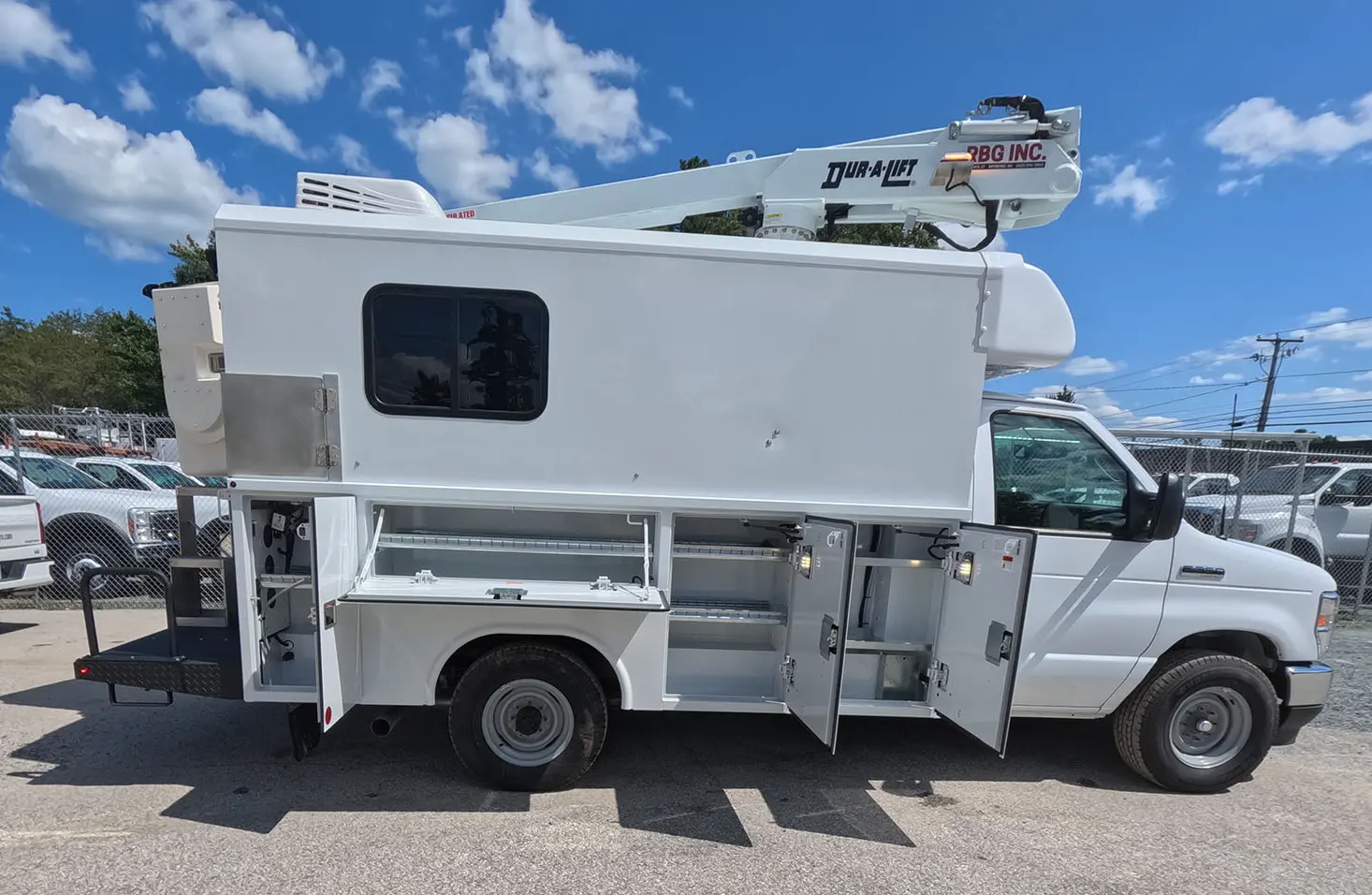

Splicing/Interior Specifications

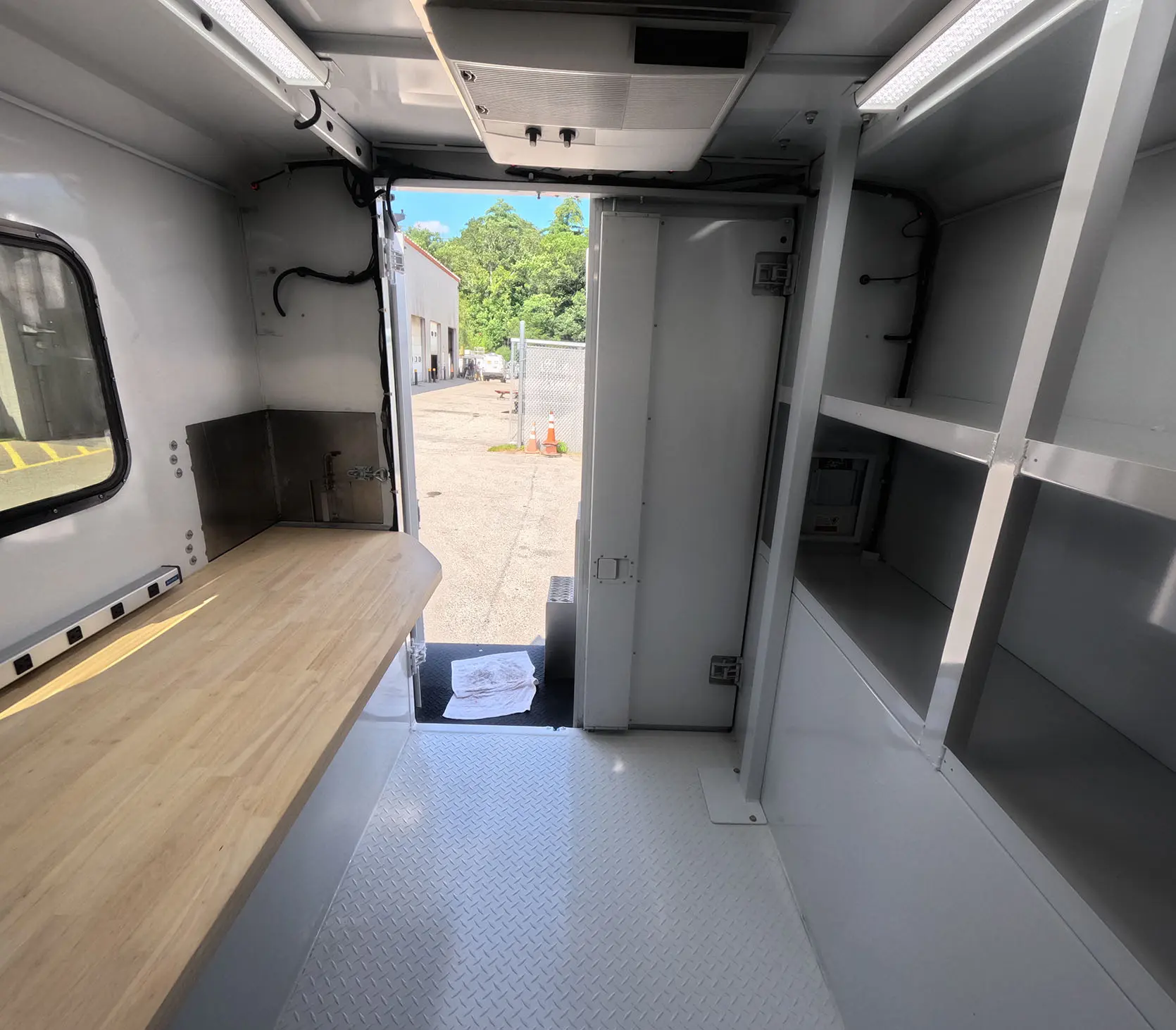

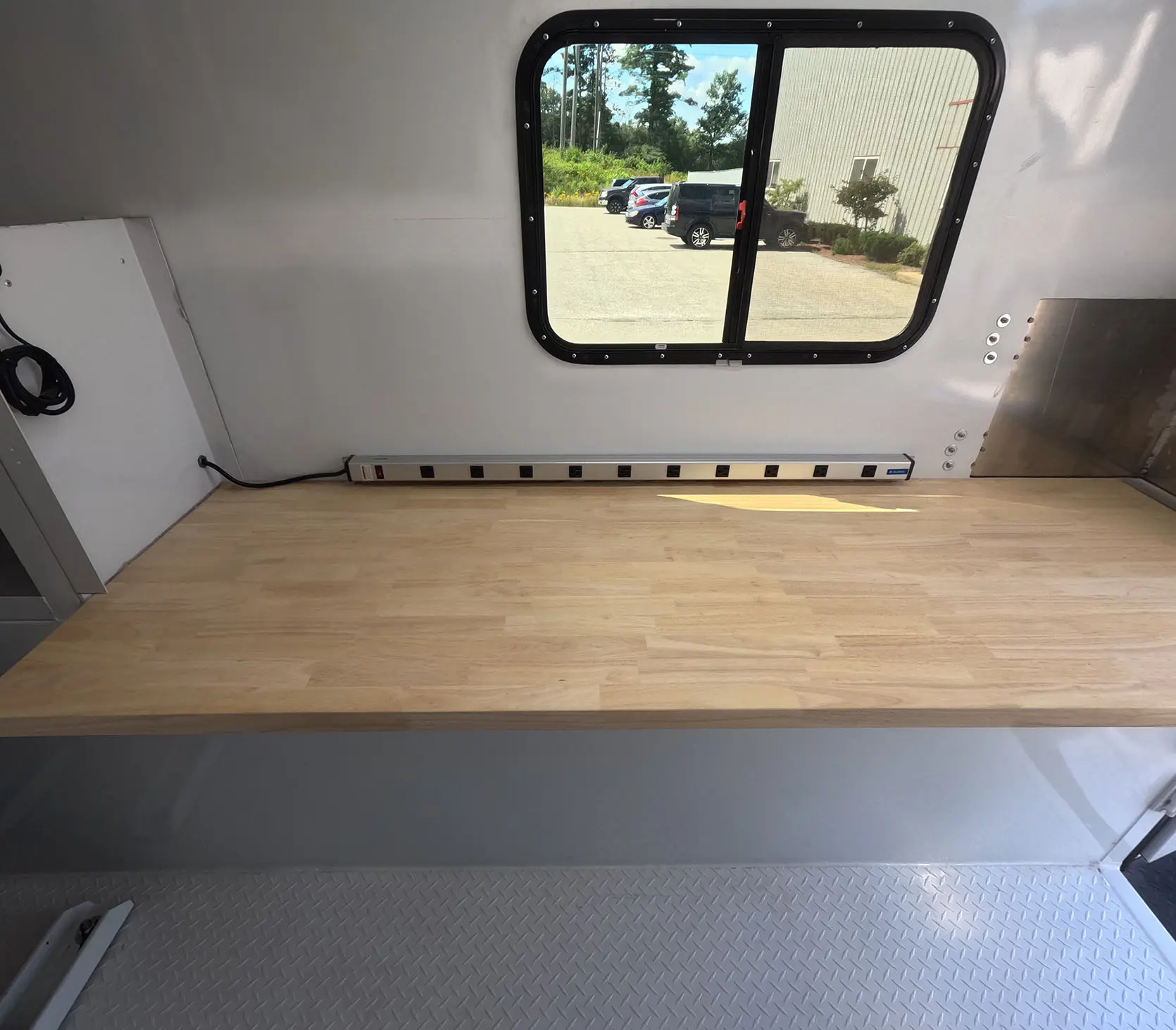

One (1) Birch countertop installed on the top of the curbside side compartment structure.  Counters shall extend from the rear of the body and be approximately 96” long x 24” wide x by 2” thick.

One (1) curbside corner hinged splicing door

Fasclamp Fiber hold down fixture

Streetside compartment tops left open

Three (3) ECCO #EW602, 33” LED ceiling light, 12 vdc, switched and mounted on the ceiling above the counter.  Controlled by a switch at the rear doors

One (1) Ventline 14” x 14” Roof Vent, with crank open dome and 12 vdc powered integral fan.  Controlled by a switch at the rear doors

One (1) 24” x 15” curbside sliding body window with screen

120 VAC:

Install an 3500watt Predator Gas Generator on the street side of the tailshelf. The following will be included:

Remote Start/Stop in cab and splicer lab

GE TPL Weather Resistant Breaker Panel in the streetside rear compartment

Install a 2000 watt Vanner inverter with a 4D battery for powering the lights and outlets

Air Conditioning:

Provide a Coleman Mach 8 roof mount air conditioner with integral heat pump. The unit will provide 13,500 BTU’s of cooling and be equipped with integral ceiling mount controls.  A finish bezel will be included for the interior

Heat:

One (1) Electric Wall Heater

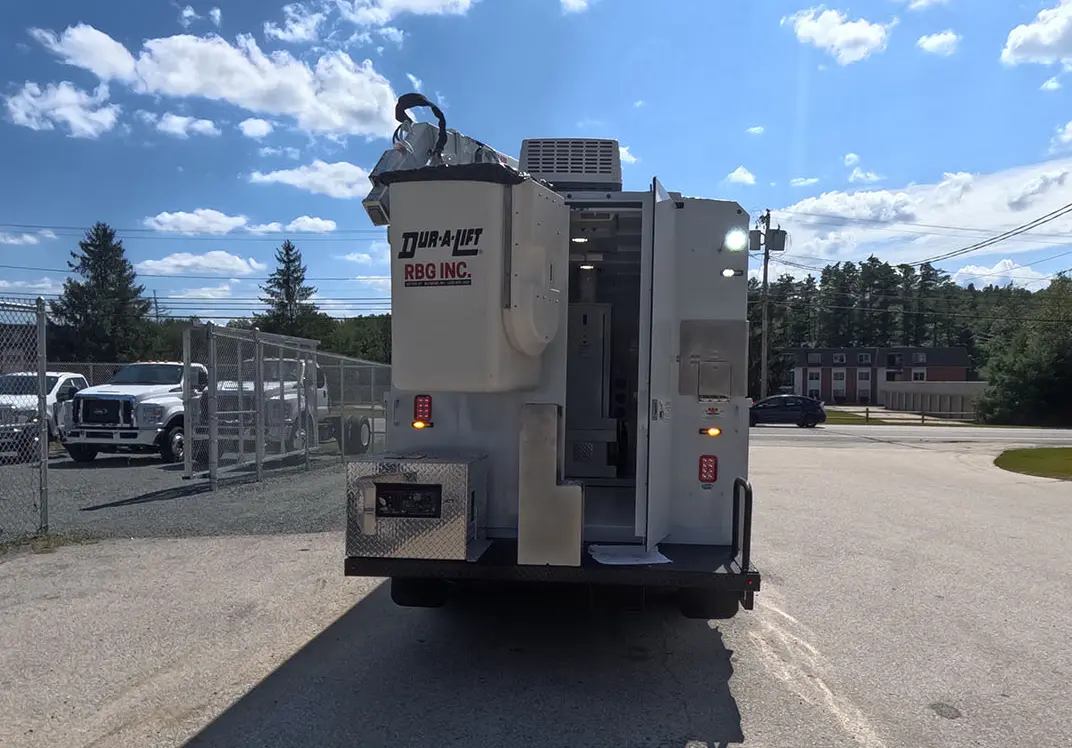

Tailshelf:

Aluminum treadplate surfaced, structurally supported, 36” deep tailshelf.

LED ICC lighting to include stop/turn/tail and back lights

Curbside stepway access with two (2) aluminum grab loop access handle

Flexible stepway access step

Rear ICC bumper with 2” receiver mounting for a future hitch, chain loops and 7 pin flat trailer socket with cover

Generator mounting

12 VDC Electrical:

Warning lights

Two(2) ECCO amber LED beacons installed on the side of the lift turret

Two (2) ECCO#3712A amber LEDs installed in rear of the body

Two (2) ECCO #3712A amber LEDs installed in on grille

Two (2) Ecco 5” work lights mounted on the rear of the body
