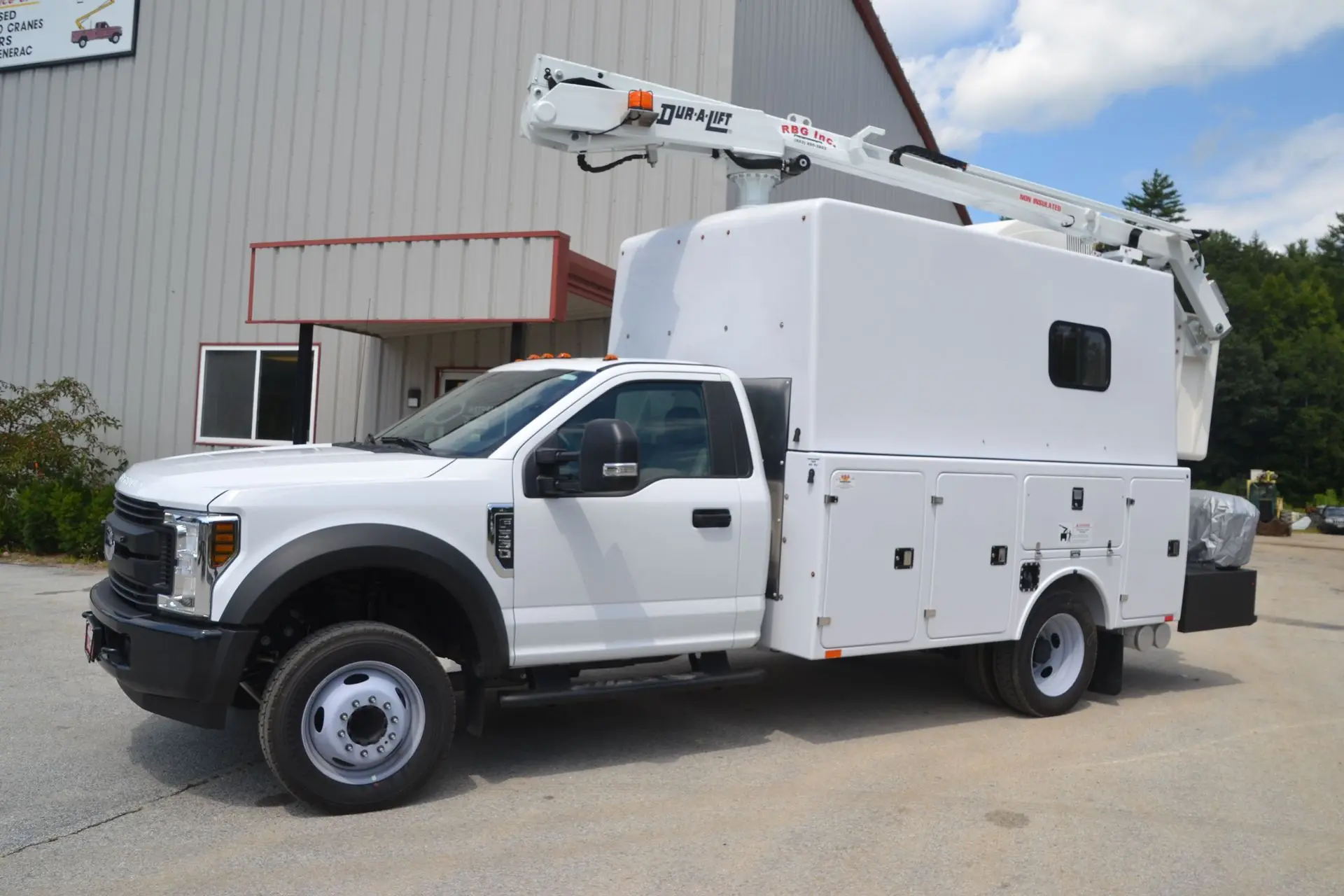

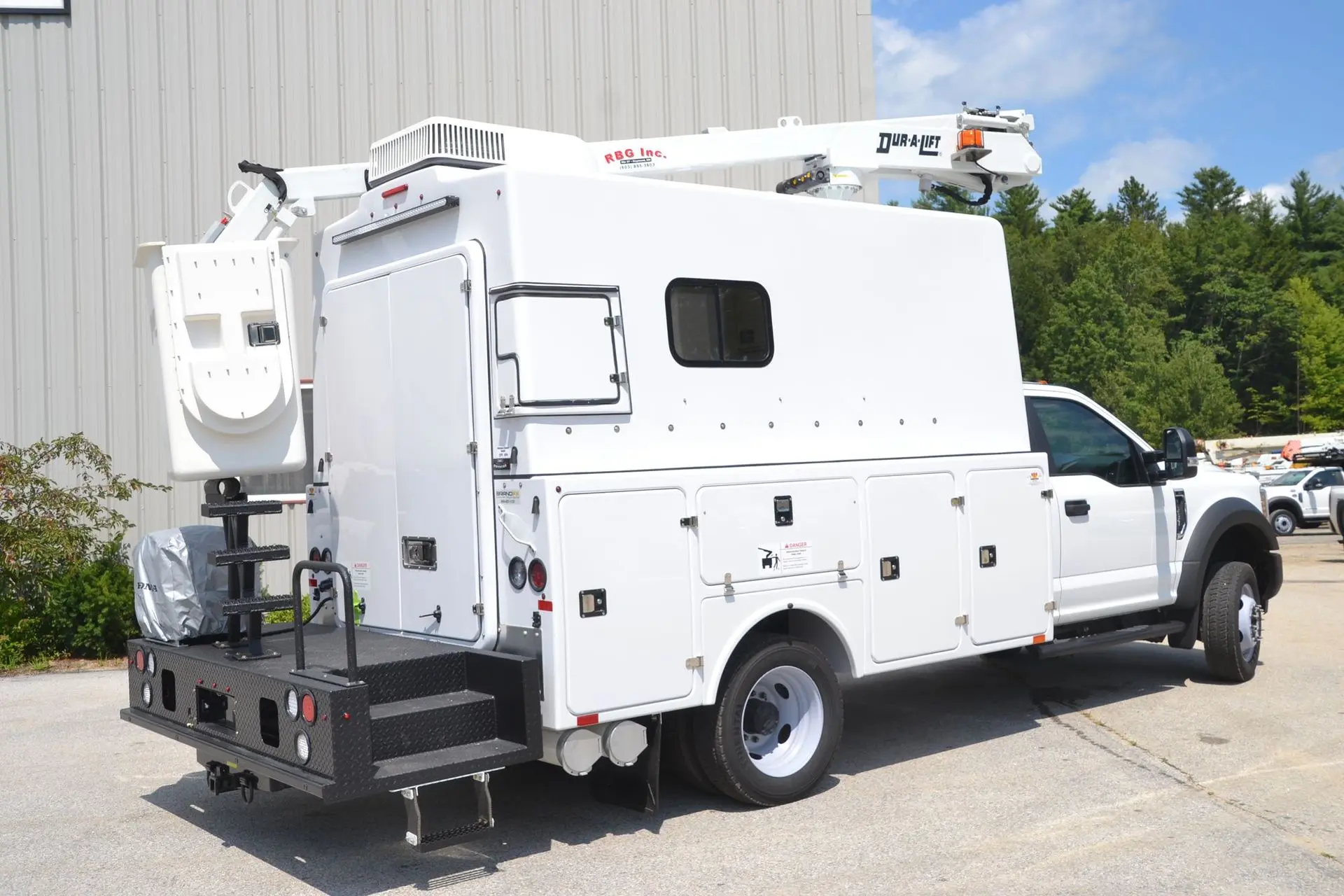

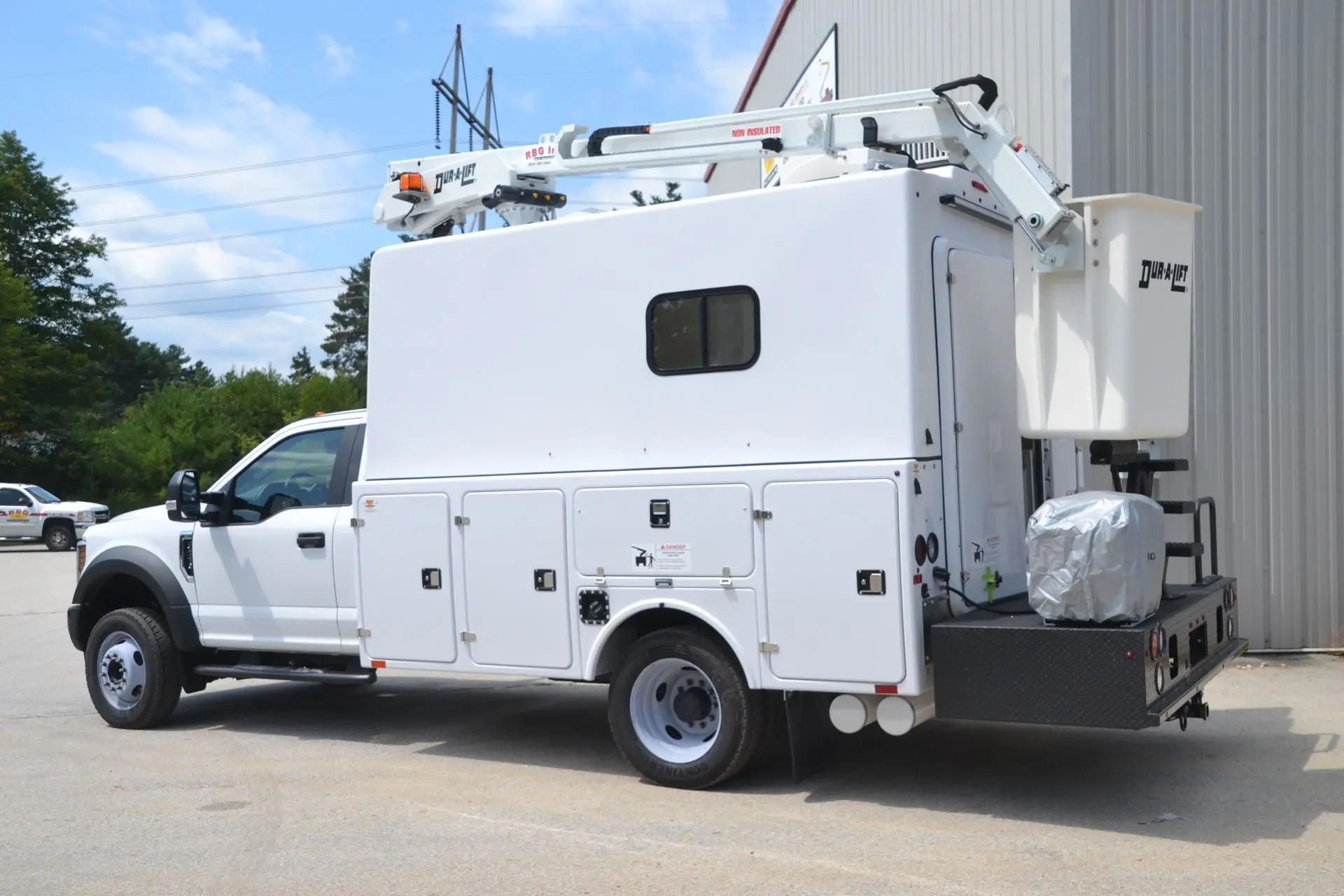

DVS-29-TS 29’ telescopic aerial, non insulated
- Pedestal Riser, 22”
- 29’ of platform height
- 34’ of working height
- 21’ side reach
- Platform capacity of 350 lbs
- 24” x 24” x 42”
- Walk thru bucket with door
- Electric Controls
- Emergency Power
- Engine Start/Stop
- Bucket Cover
- 370 degree Non-Continuous rotation
- Three GPM open center hydraulic system
- Non-relube bearings used throughout
- Integral hydraulic oil reservoir with dual sight gauges
- Emergency Power Insulated 12V DC hydraulic system
- Master / Slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue.
- Lower remote controls mounted in rear compartment
- Rear torsion bar stabilization
- Upper boom storage cradle with ratchet type tie down strap and tubular rubber platform support
- Body harness and lanyard
- Standard white urethane paint
- Two operator’s manuals and two service manuals.
- ANSI A92.2 Data plate
- 10 Gallon internal hydraulic tank
- Engine driven hydraulic pump
- Open circuit operation
- Emergency Brake Interlock
