Working height: 41 ft 4 in
Platform height: 34 ft 9.3 in
Horizontal reach: 28 ft 8.5 in
Travel height: 41 ft 4 in
Platform capacity: 600 lbs
Platform rotation: 180°
Vertical jib rotation: 180°
Turntable rotation: 360° (continuously)
Driving speed in transport mode: 0 - 1.74 mph
Driving speed at height: 0 - 0.25 mph
Slope in transport mode: 45% = 25°
Automatic bi-leveling: 15° / 15°

Machine
Stowed (l x w x h): 15 ft 2.8 in x 5 ft 8.9 in x 6 ft 7.3 in
Tail swing (counterweight in): 9.8 in
Tail swing (counterweight out): 2 ft 5.5 in
Total weight: 6,572 lbs

Undercarriage
Width stowed: 5 ft 8.9 in
Width extended: 7 ft 2.6 in
Ground clearance tracks stowed: 6.5 in
Ground clearance tracks extended: 10.7 in

Platform
Dimensions (l x w x h): 5 ft 1.0 in x 2 ft 7.5 in x 3 ft 7.3 in
Entry width: 2 ft 1.5 in
Entry height: 3 ft 0.2 in
Step in height: 1 ft 3.7 in

11.36 gal fuel tank capacity

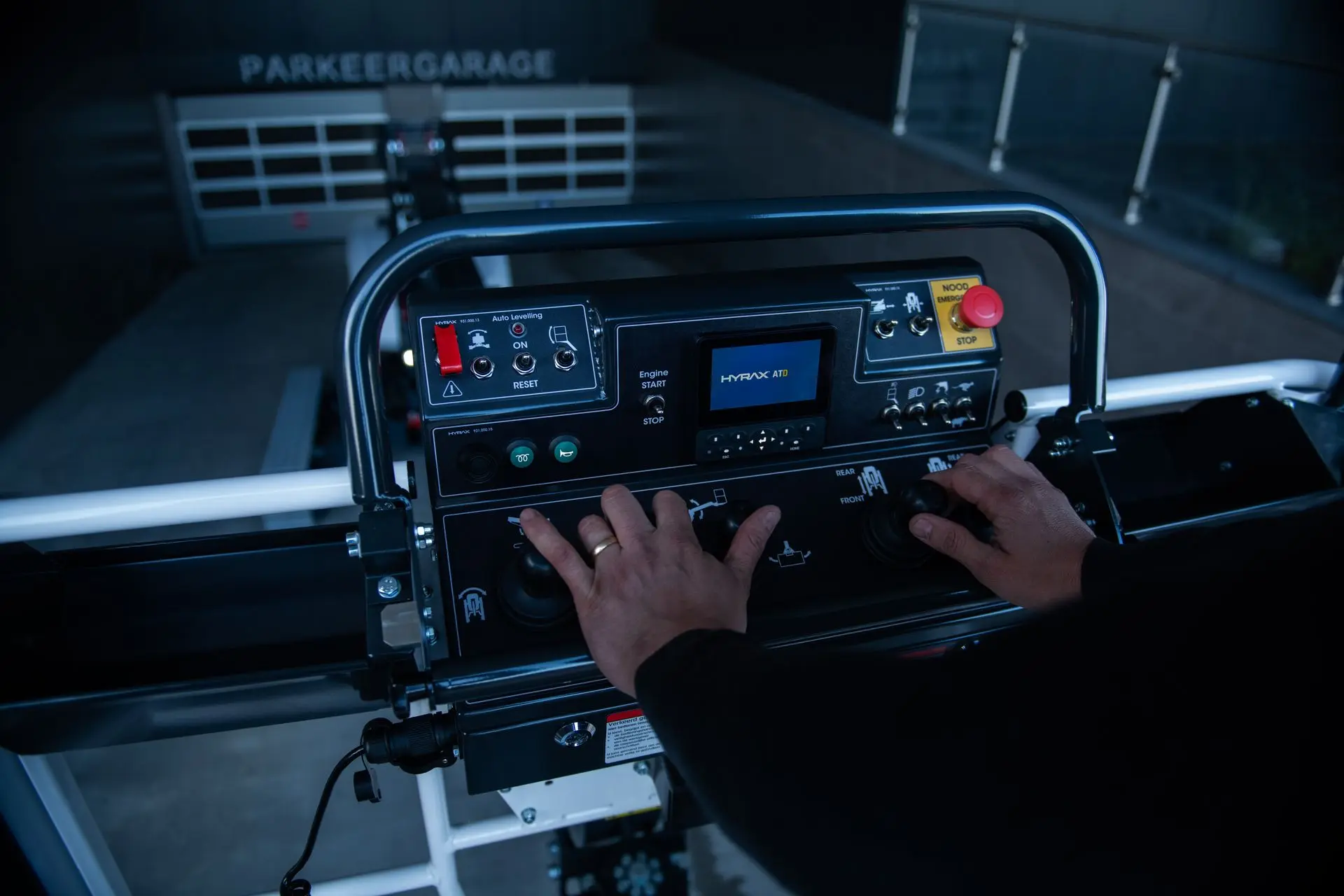

Fully proportional controls
Load sensing hydraulic pump
2 speed track motors
Automatic proportional RPM controller

Complies with ANSI A92 / CSA B354
Tilt alarm
LED flashing lights on rear
Overhead safety crush prevention
Integrated weight system in platform
12V emergency lowering pump
Dual top railing on basket
Horn

ATD 18.5kW 3 cyl. Kubota Diesel Engine
ATE Fully Lithium Powered (Coming Soon)

4x led work lights on main frame
Led flood light under platform
Non-marking rubber tracks (grey)
Automatic bi-leveling 15° / 15°
HY-Link portal communications
Additional counterweight - 507 lbs

Foldable load carriers on platform (155 lbs)
Extra screw trays
Holder for spray cans
Adjustable work lights on platform
Water level holder in platform
Pail hanger in platform
