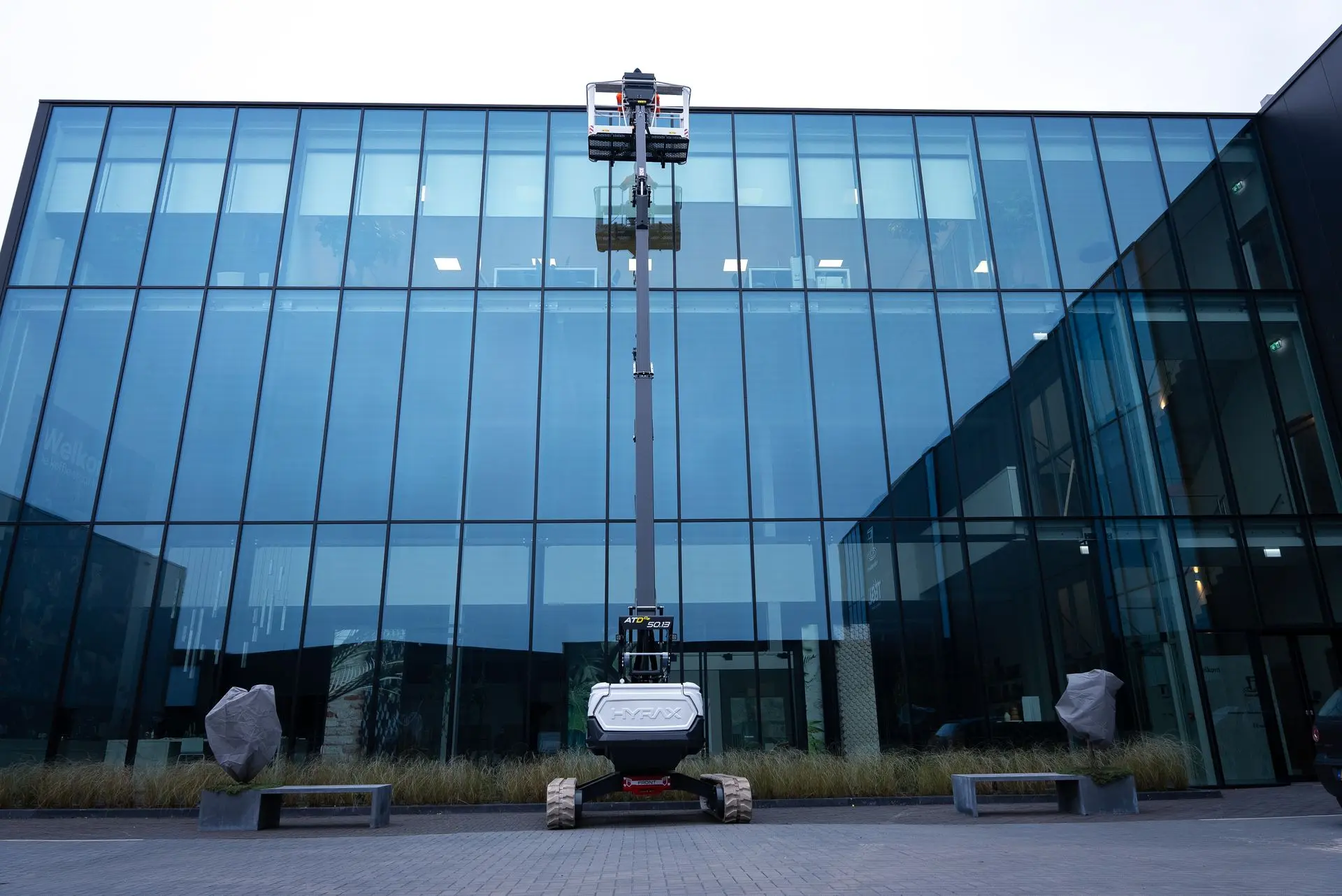

Up to 43.3 feet high
Work higher, get more done.

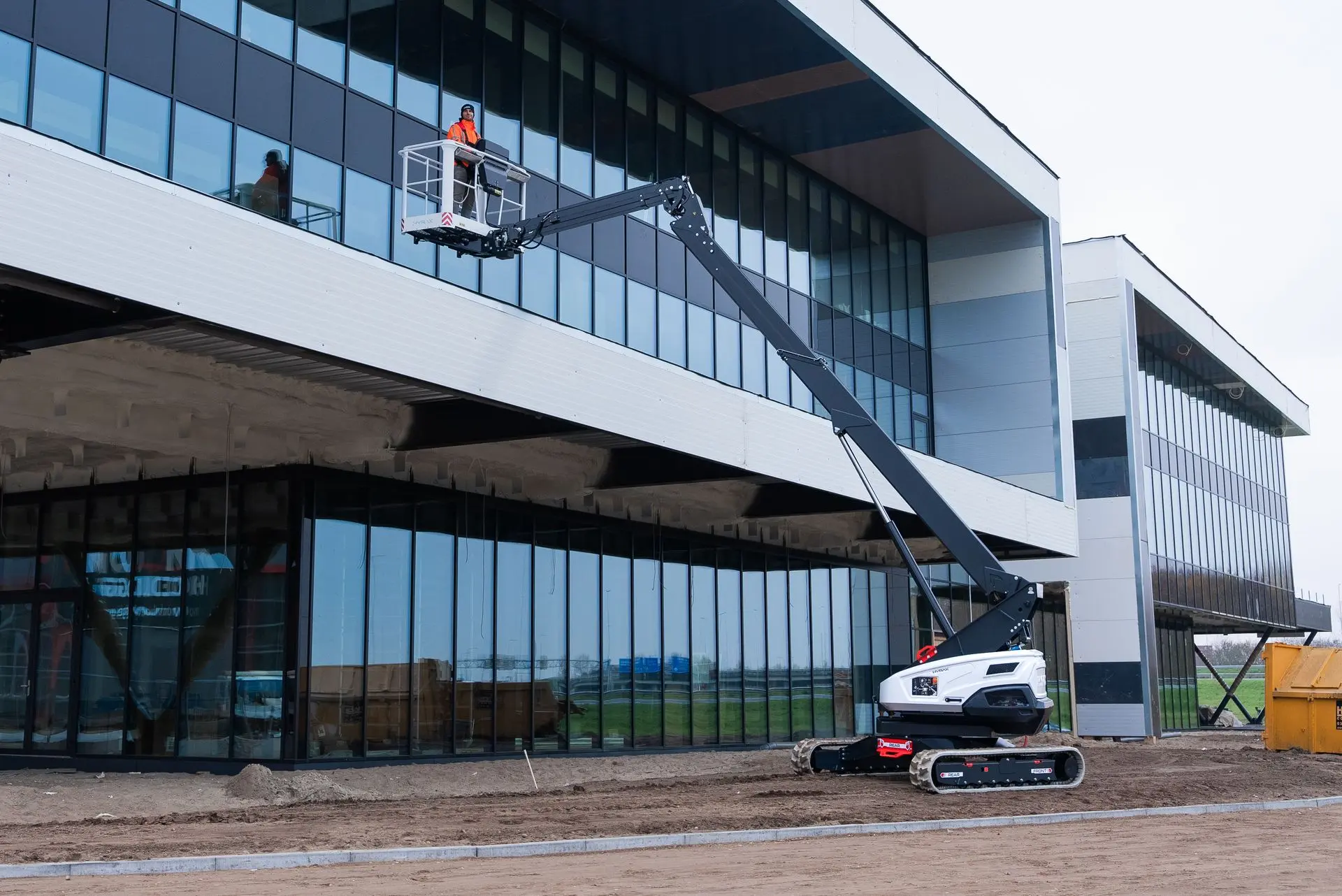

Reach sideways up to 32.8 feet
Work further with 175 lbs at 28 ft sideways
Up to 727 lbs
Plenty of room for 2 people and material
Safety to height
Anti-entrapment protection
above control panel
Automatic self-leveling
Keep working up to 15° on a slope
Travel up to 1.4 mph
At 43.3 feet with 0.2 mph
180° Jib rotation
180° functional jib
360° Turntable rotation
360° continuous rotation
180° Platform rotation
Flexible platform with 180° rotation
Working height: 43 ft 3.7 in
Platform height: 36 ft 8.9 in
Horizontal reach: 32 ft 9.7 in
Travel height: 43 ft 3.7 in
Platform capacity: 730 lbs
Platform rotation: 180°
Vertical jib rotation: 180°
Turntable rotation: 360° (continuously)
Driving speed in transport mode: 0 - 1.43 mph
Driving speed at height: 0 - 0.25 mph
Slope in transport mode: 45% = 25°
Automatic bi-leveling: 15° / 15°

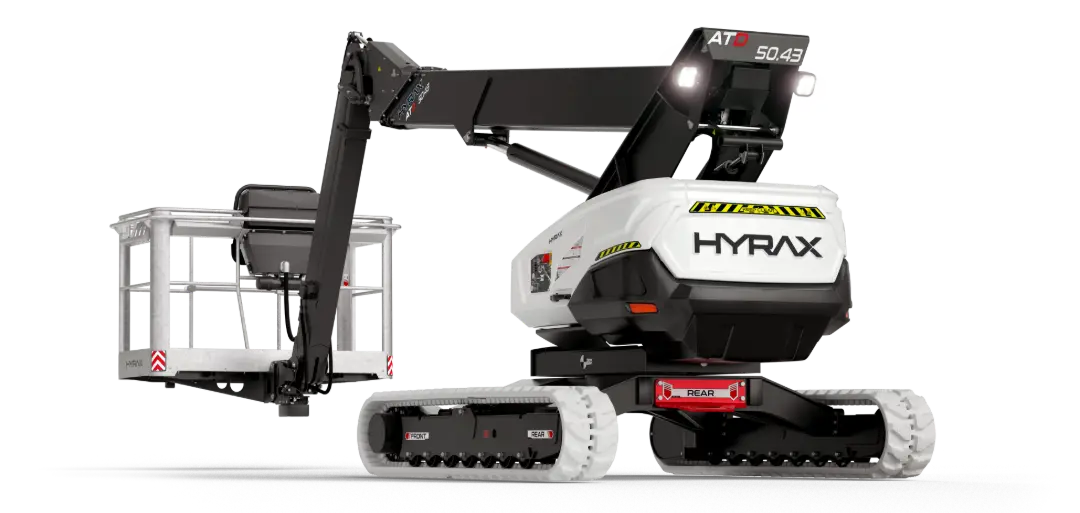

Machine
Stowed (l x w x h): 15 ft 7.5 in x 7 ft 2.6 in x 7 ft 9.5 in
Total mass without options: 10,637 lbs
Ground clearance: 1 ft 1.8 in
Platform
Standard - Dimensions (l x w x h): 5 ft 10.8 in x 2 ft 7.5 in x 3 ft 7.3 in
Option - Dimensions (l x w x h): 5 ft 1.0 in x 2 ft 7.5 in x 3 ft 7.3 in
Entry width: 2 ft 1.4 in
Entry height: 3 ft 0.2 in
Step in height: 1 ft 3.7 in
12.15 gal fuel tank capacity
Fully proportional controls
Load sensing hydraulic pump
2 speed track motors
Automatic proportional RPM controller
Complies with ANSI A92 / CSA B354
Tilt alarm
LED flashing lights on rear
Overhead safety crush prevention
Integrated weight system in platform
Dual top railing on basket
Horn
ATD 18.5kW 3 cyl. Kubota Diesel Engine
ATE Fully Lithium Powered (Coming Soon)
4x led work lights on main frame
Led flood light under platform
Non-marking rubber tracks (grey)
Automatic bi-leveling 15° / 15°
HY-Link portal communications
Foldable load carriers on platform (155 lbs)
Extra screw trays
Holder for spray cans
Adjustable work lights on platform
Water level holder in platform
Pail hanger in platform
