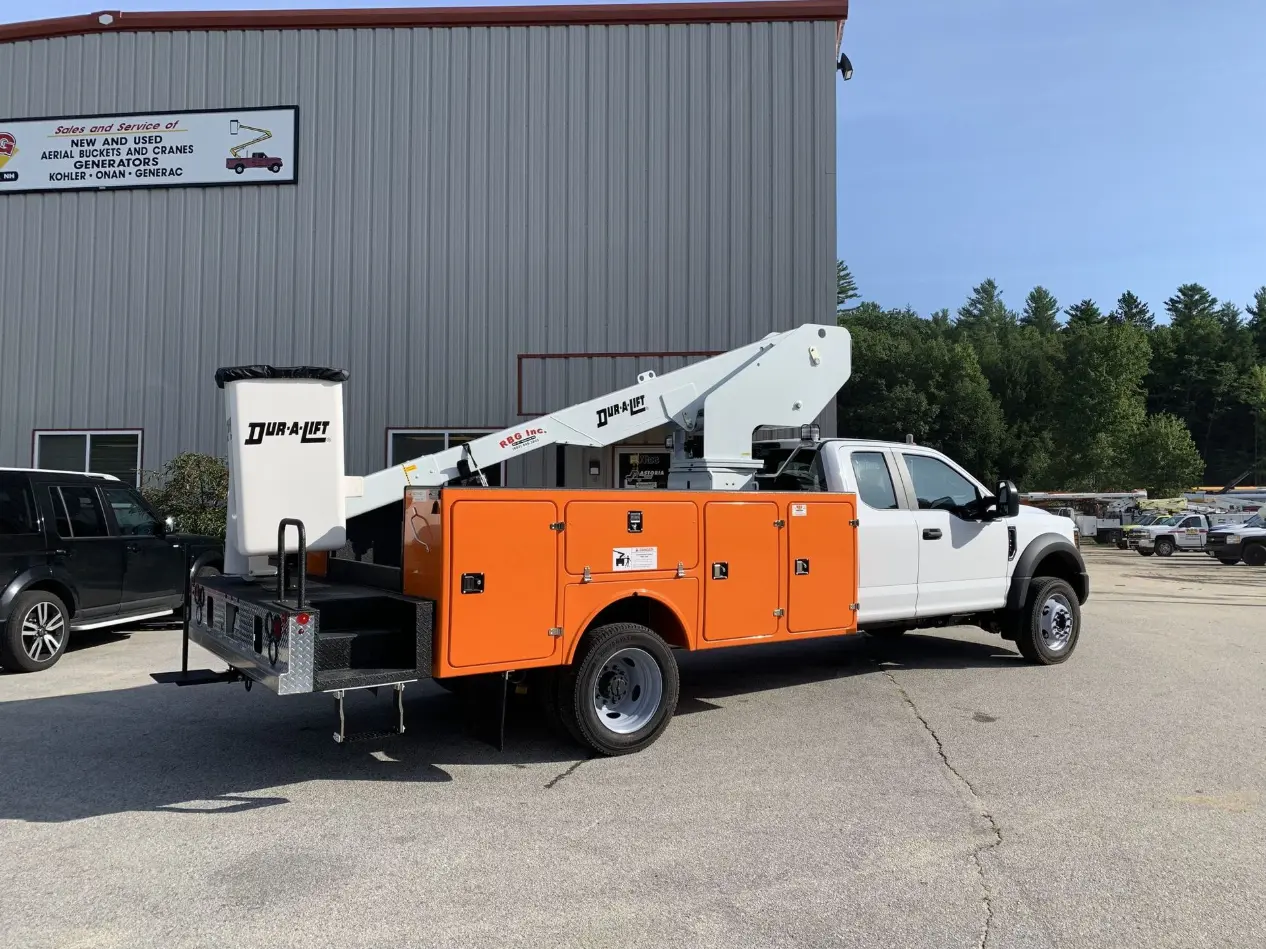

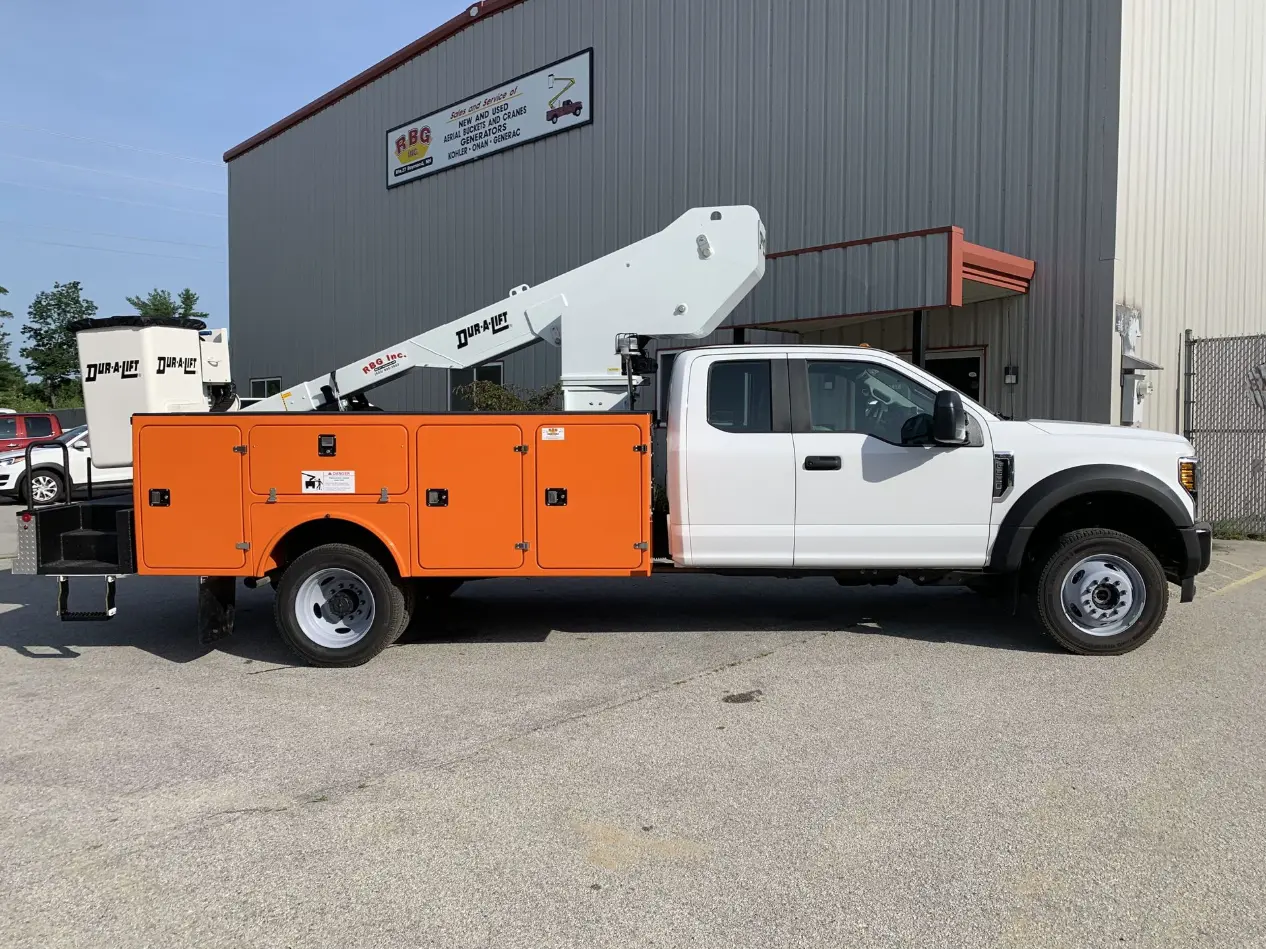

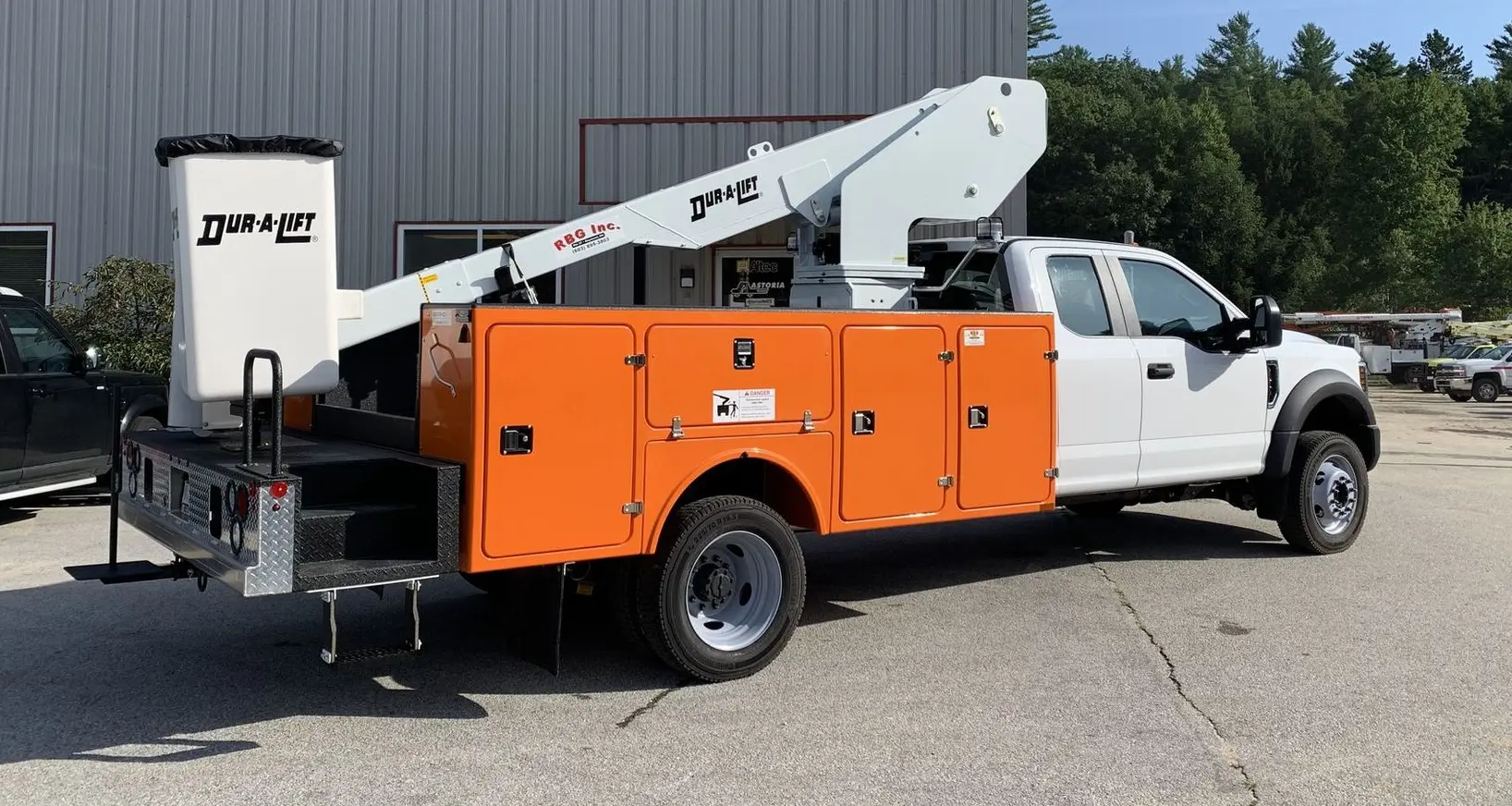

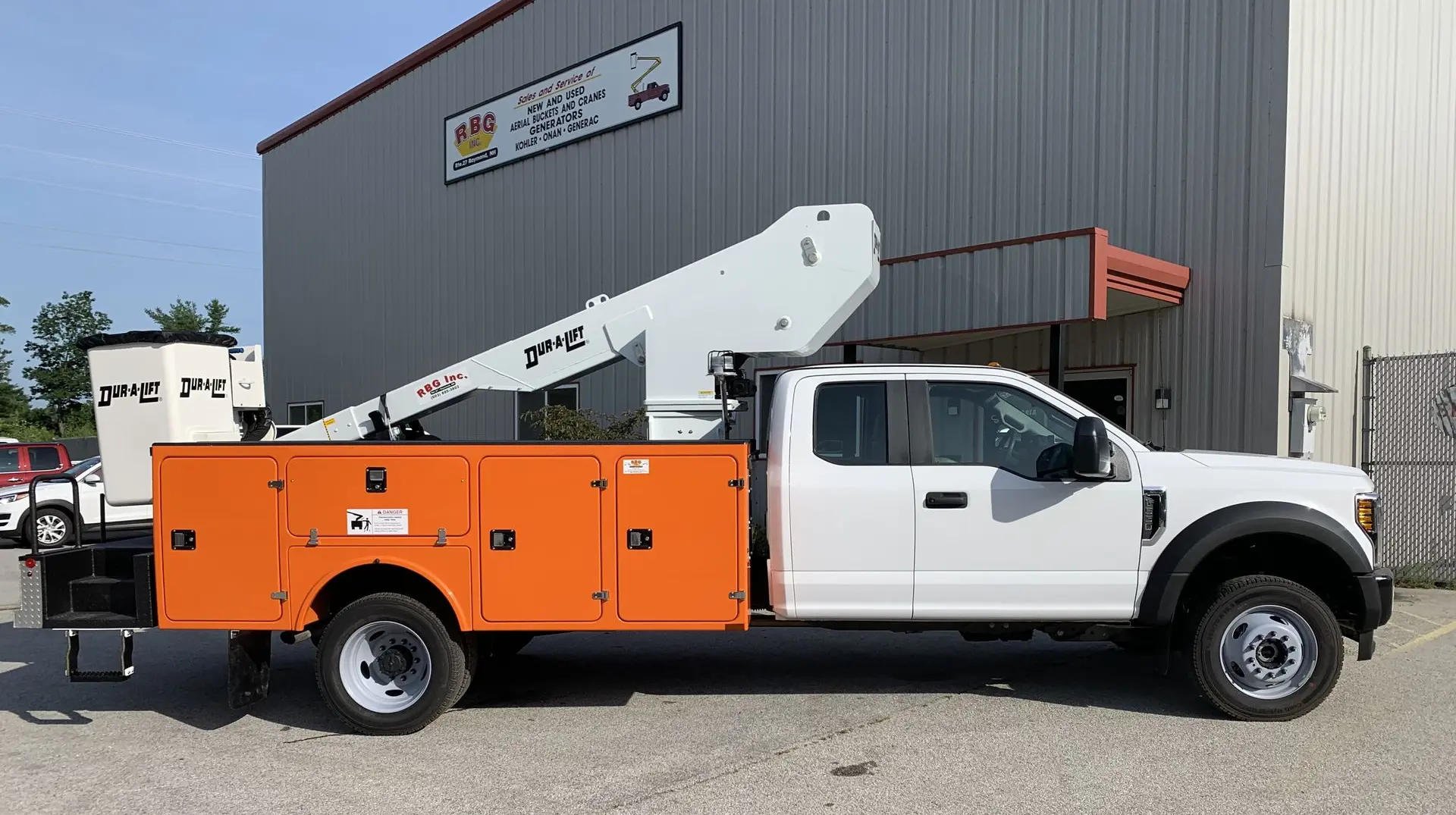

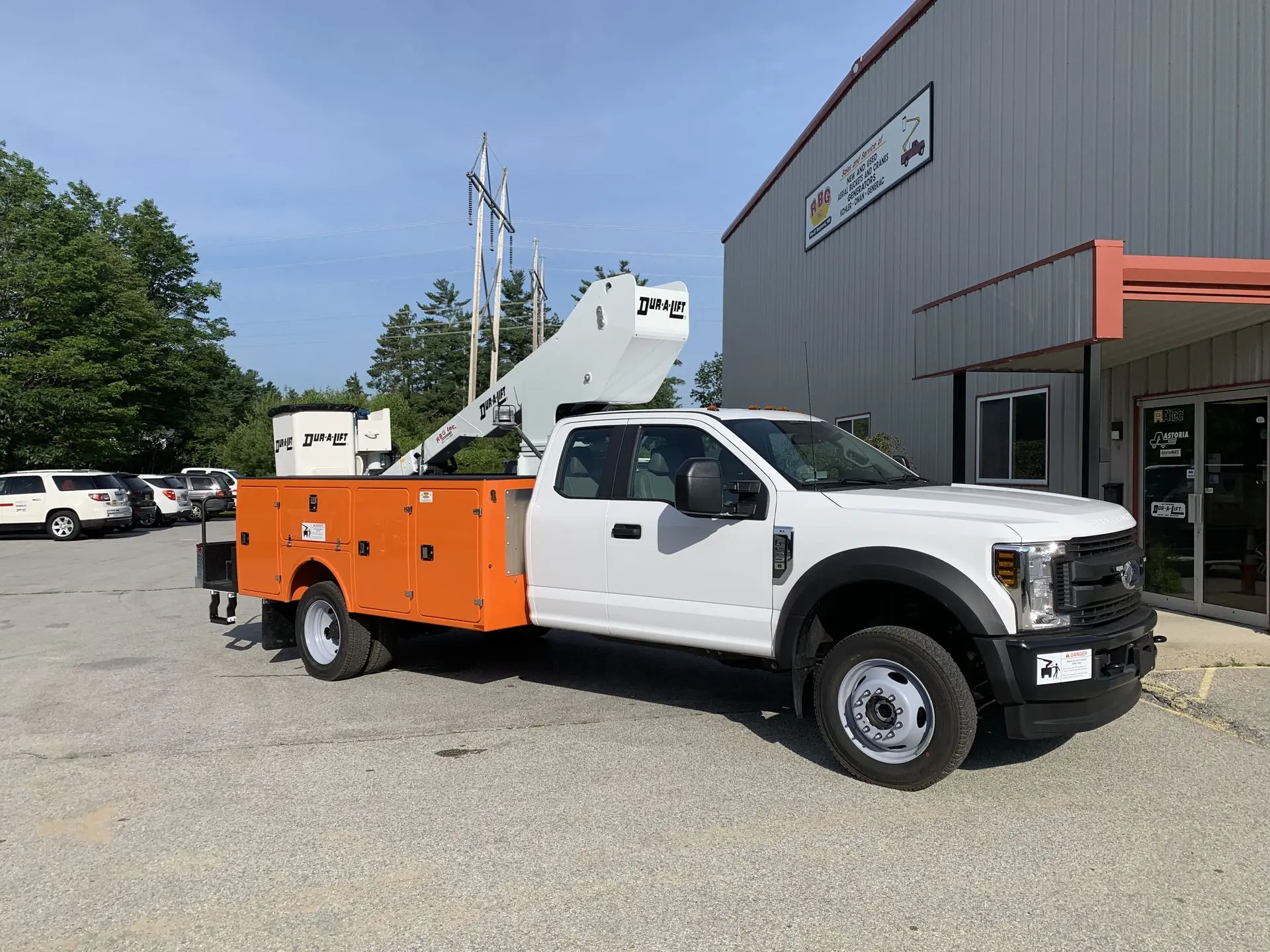

Dur-A-Lift DHT-34 Insulated telescopic aerial platform lift

• 34’ of platform height
• 39’ of working height
• 26’ of side reach
• Continuous rotation
• Five GPM open center hydraulic system, PTO operated
• Turret wing travel no greater than 48” from centerline of rotation

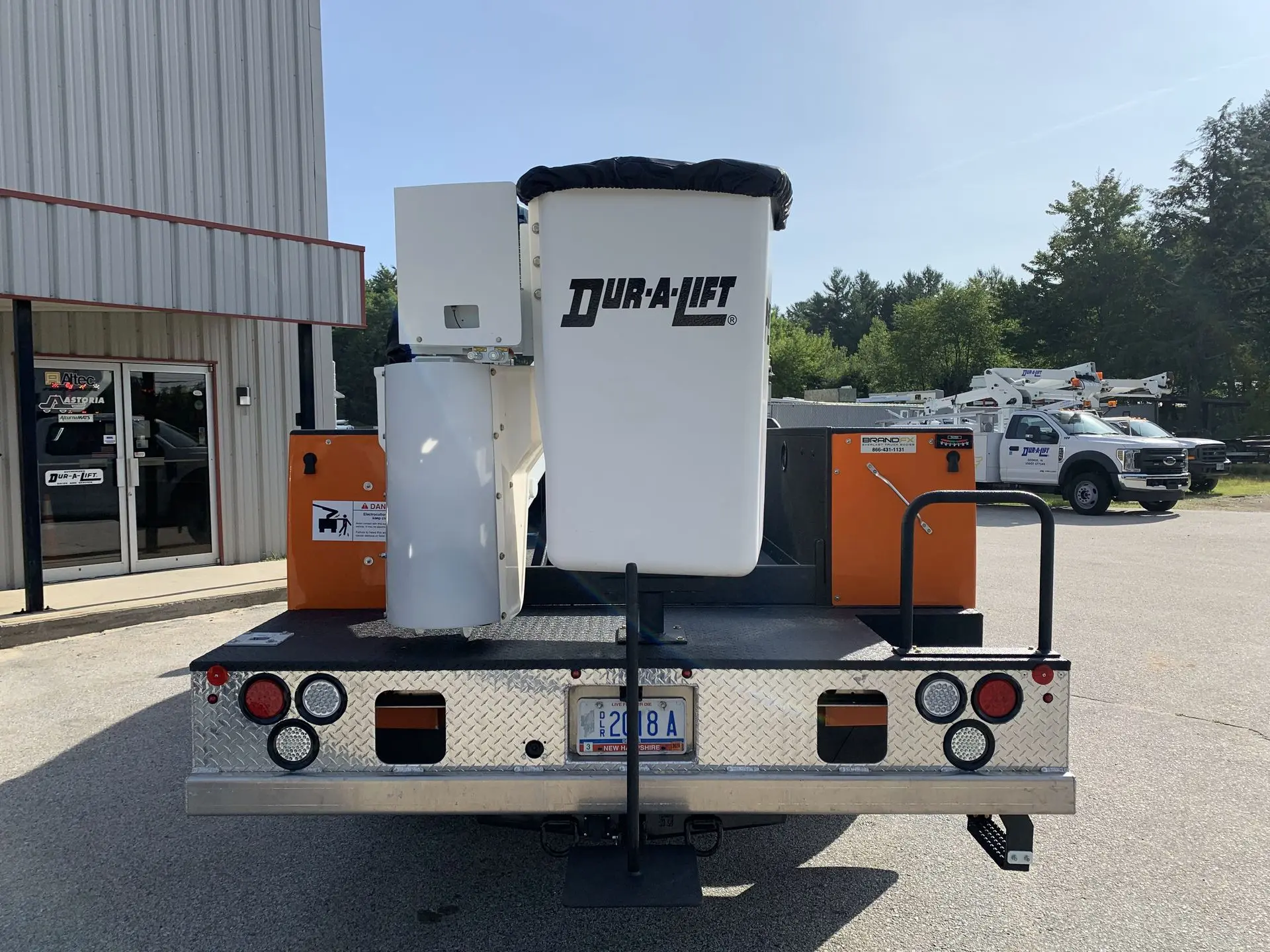

Bucket

• Platform capacity of 400 lbs./350 lbs. with liner
• 24” x 30” x 42”
• 180 degree rotation
• Bottom mounted bucket with safe access steps
• Bucket Cover
• Bucket Liner with interior step
• Bucket mounted controls to include:
• 3 Axis Single Hand Control located over the bucket rotator.
• Full 3 side bucket access without extended reach over boom
• Non-conductive “single stick” control
• Tool selector
• Hydraulic tool outlets with fittings
• Emergency Power
• Engine Start/Stop
• 180º platform rotator
• Full pressure turret mounted lower controls with override

• Emergency Power

Brand FX Fiberglass Service Body, FB-84T

• 132” long x 42” high x 94” wide
• 84” CA with dual rear wheels.
• 48” compartment height
• 20” compartment depth
• Standard Features:
• Vinyl rock guards
• Gas fill cup
• Removable wheel panels
• White compartment interiors
• Non skid compartment tops
• Clear vinyl rock guards
• Steel understructure
• LED exterior stop/tail/turn, backup and ICC lighting
• Automotive grade door gaskets
• Aluminum forward bulkhead
• Aluminum tailskirt
• Stainless steel hinges and hardware
• Stainless steel automotive style rotary latch
• Stainless Steel cable door stops

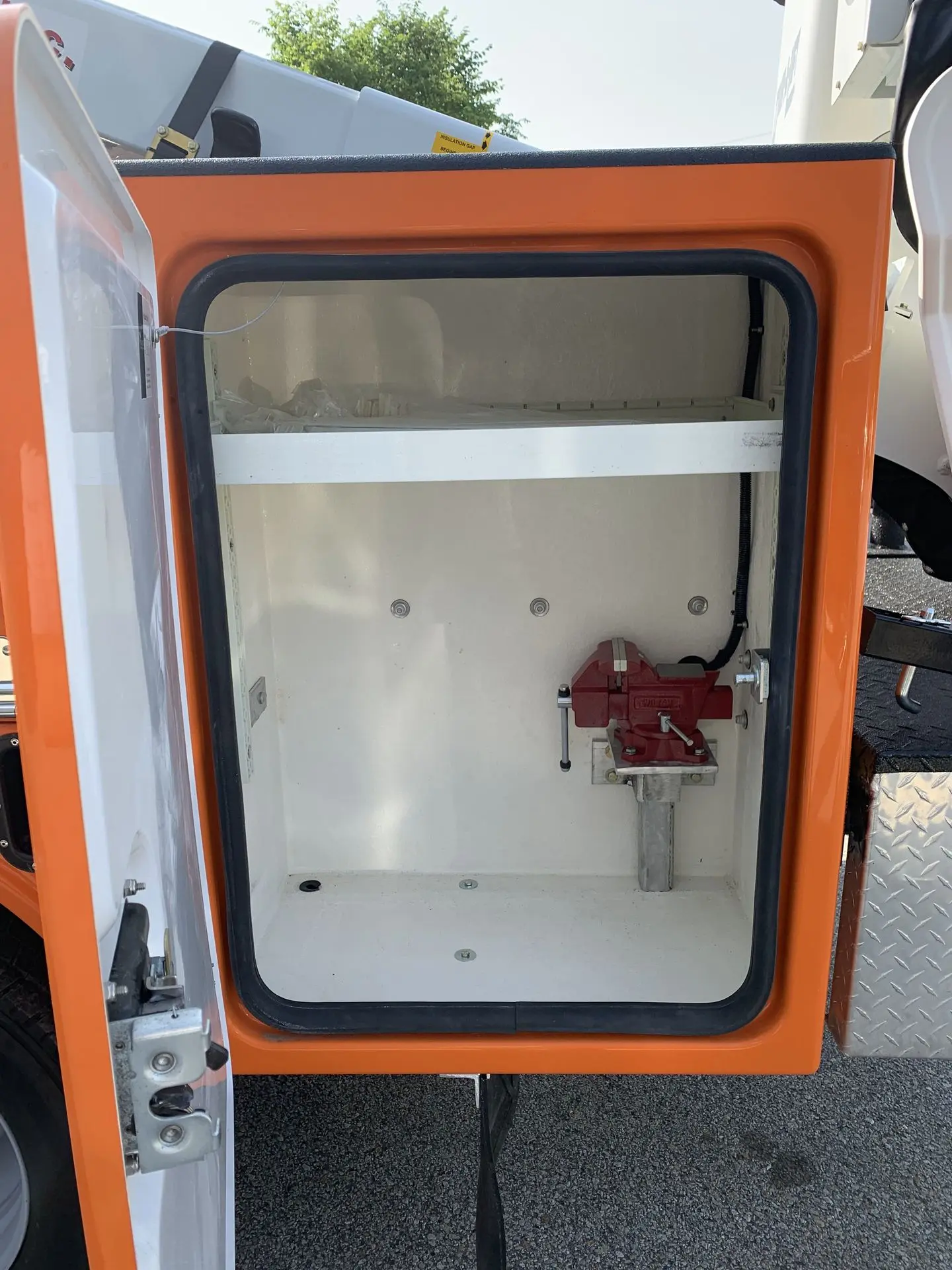

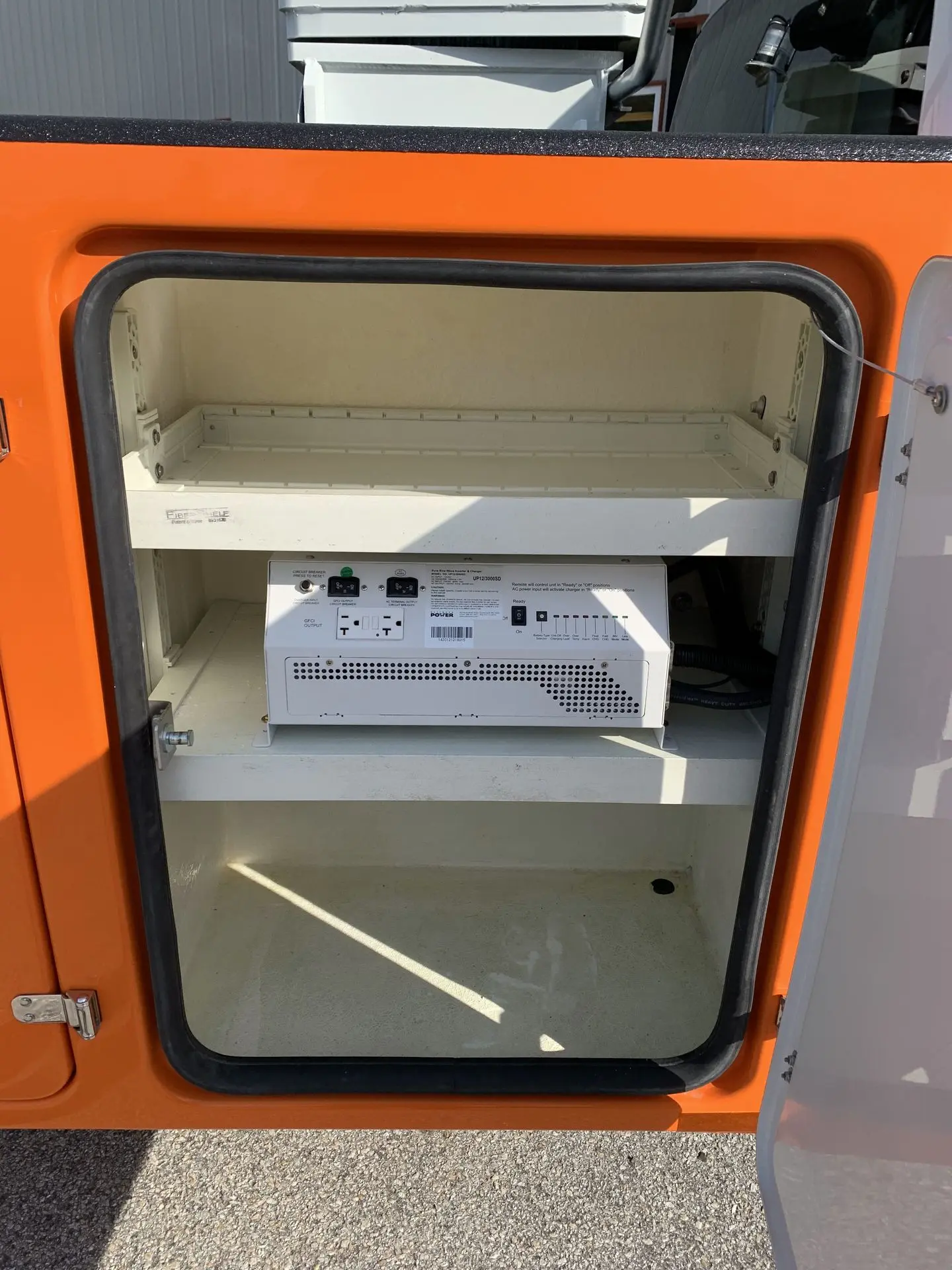

• Brackets for adjustable shelves in all compartments
• One piece molded doors
• Recessed door seal system
• Flow thru ventilation system
• .1875 Aluminum treadplate floor
• Tailboard brackets
• White Gel Coat exterior
• Flex Glo Compartment Lights
• Four (4) recessed loadbed floor tieoffs
• Treadplate overlays
• Load Bed walls

• Compartment tops
