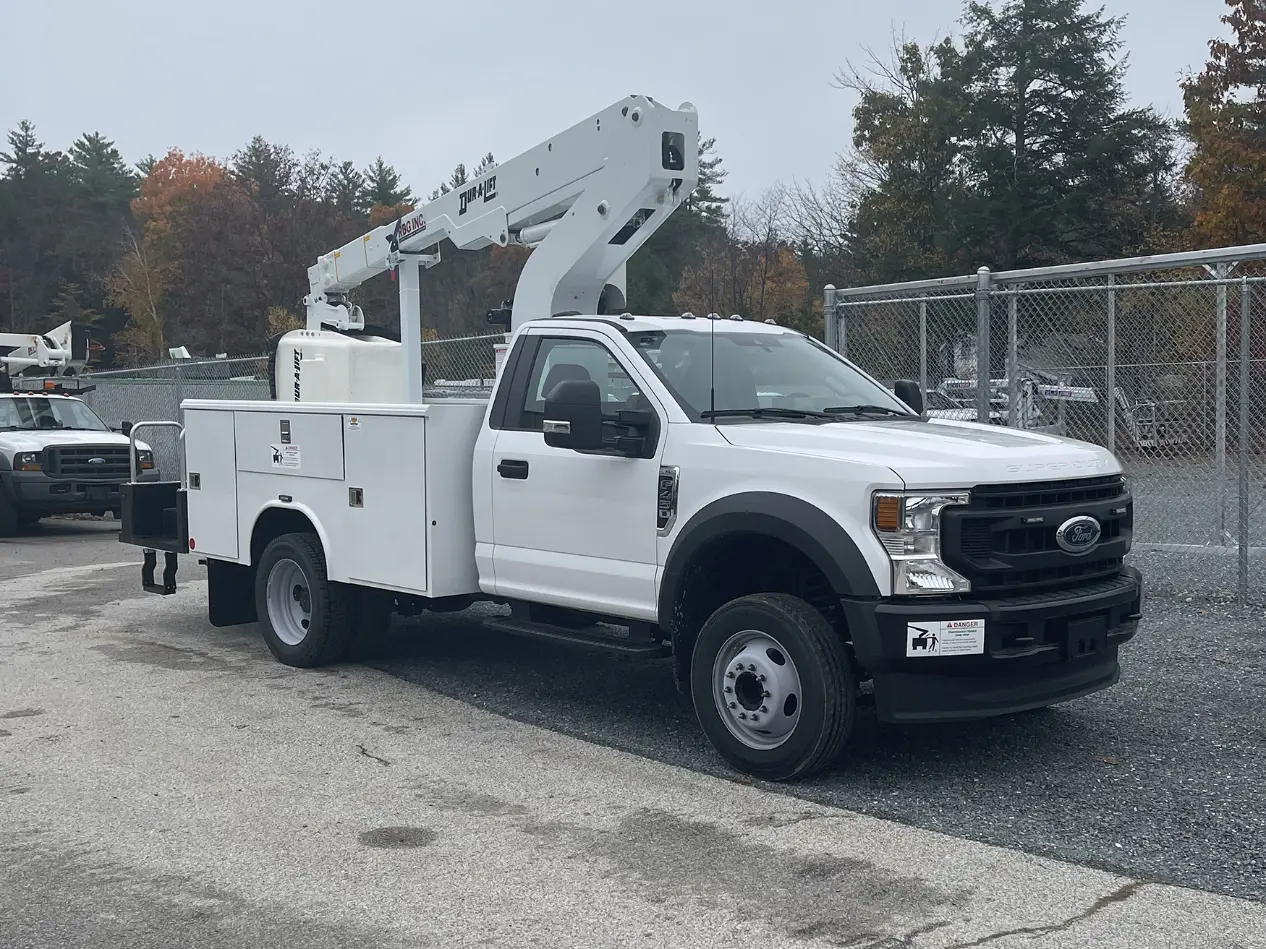

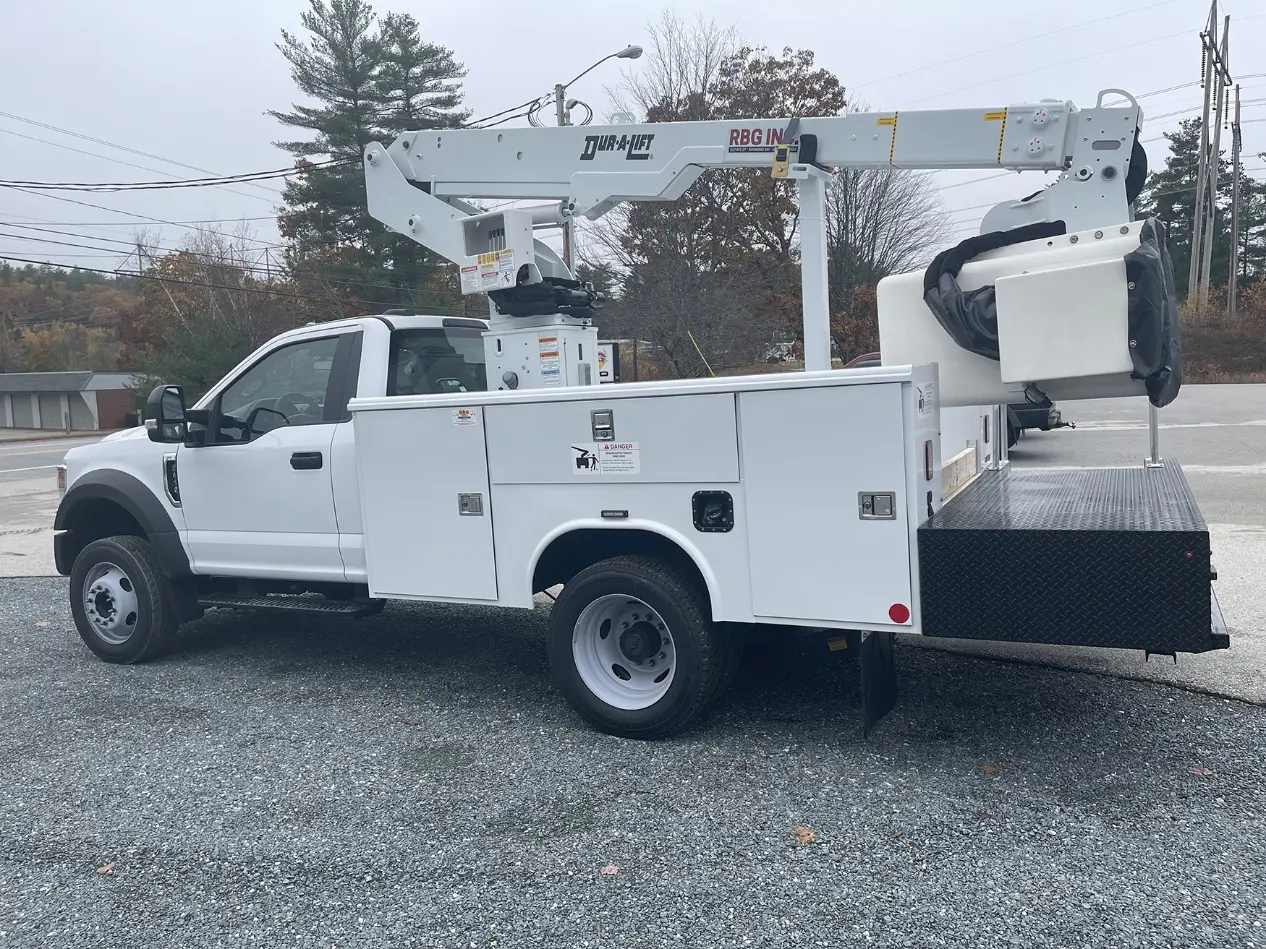

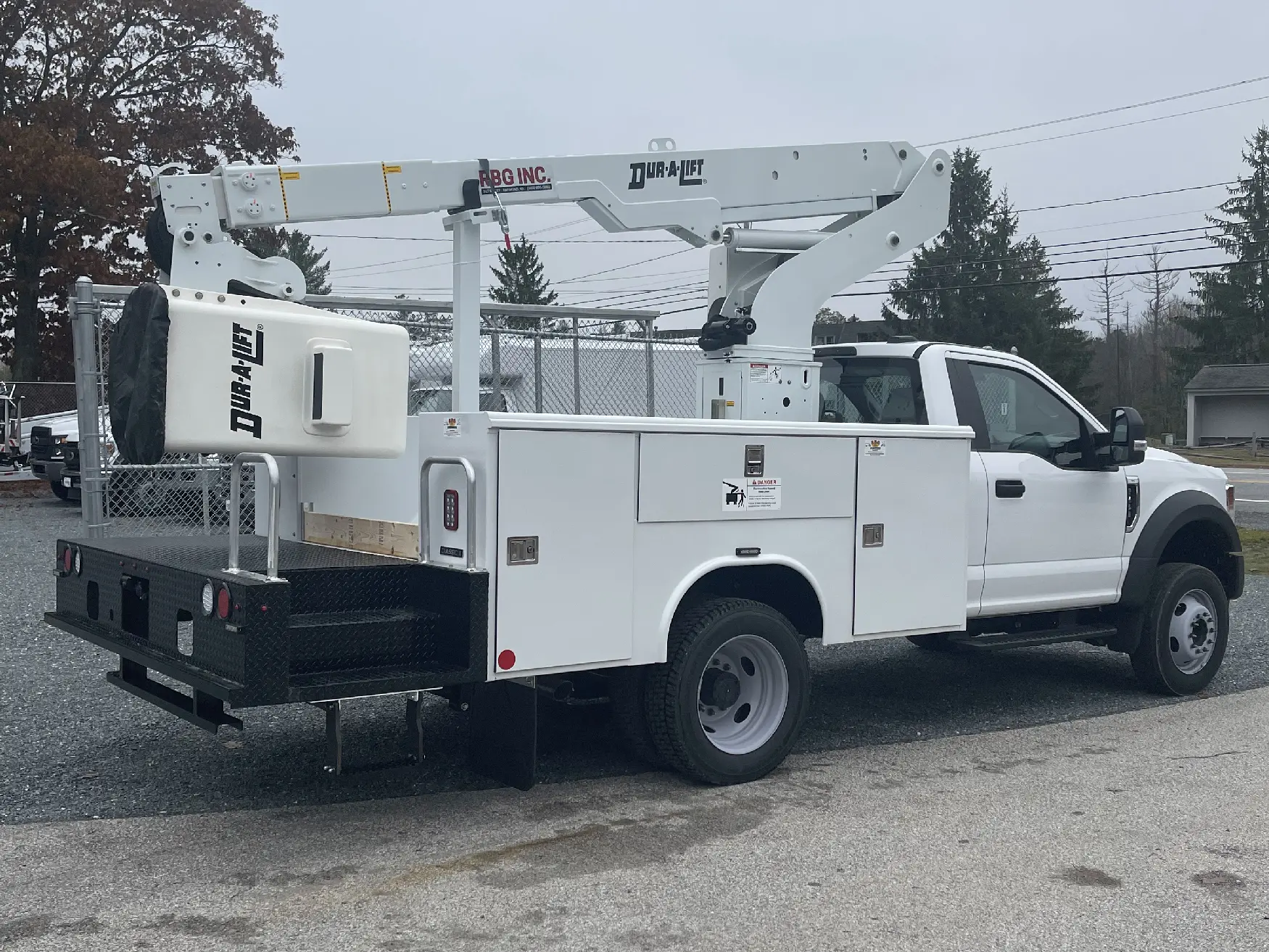

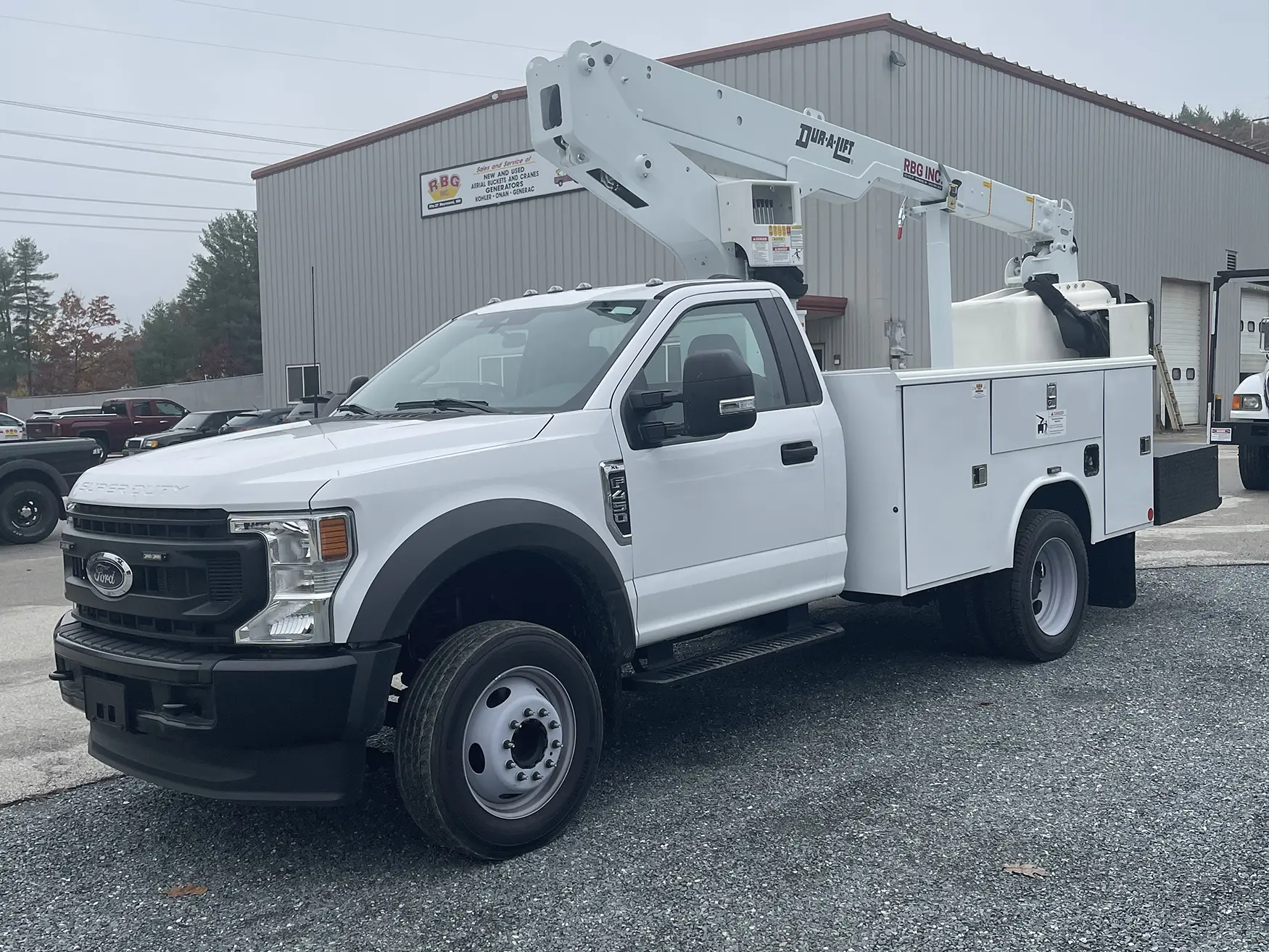

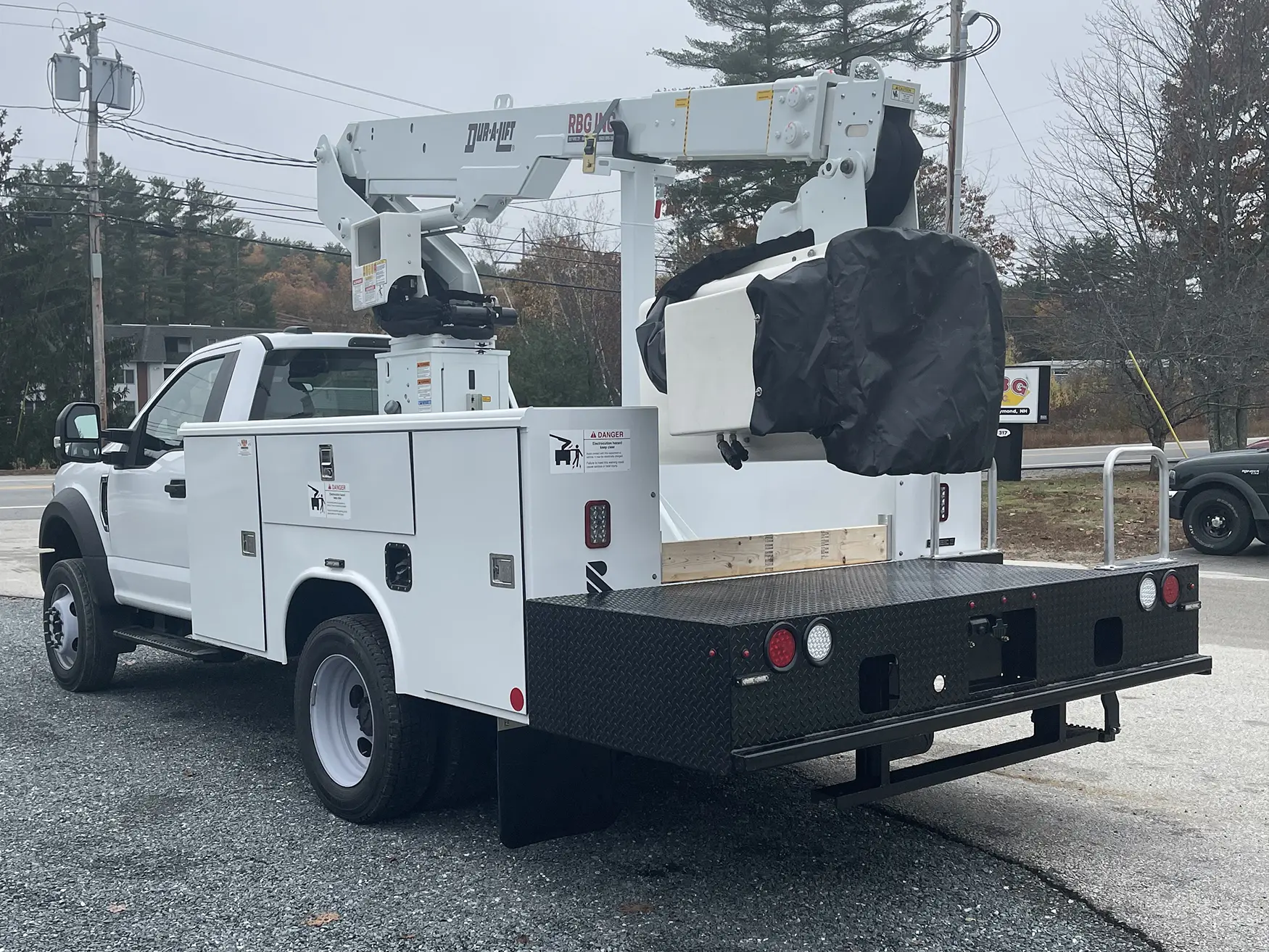

DT-29 Insulated 29’ telescopic aerial platform lift.

• 34’ of working height
• 22’3” of side reach
• -25 degree to +78 degree main boom travel
• Platform capacity of 350 lbs

Bucket Options & Controls

• 24” x 24” x 42” Fiberglass Walkin Bucket
• 4 Axis Single Hand High Resistance Control
• 12VDC Emergency Power
• Engine Start/Stop
• RBG Bucket Cover
• Tool Ports and compatible fittings
• Bucket Liner
• Full pressure turret mounted lower controls with override.
• Continuous rotation.
• Non-relube bearings used throughout.
• Emergency Power 12V DC hydraulic system.

• Master / Slave hydraulic leveling with upper and lower controls

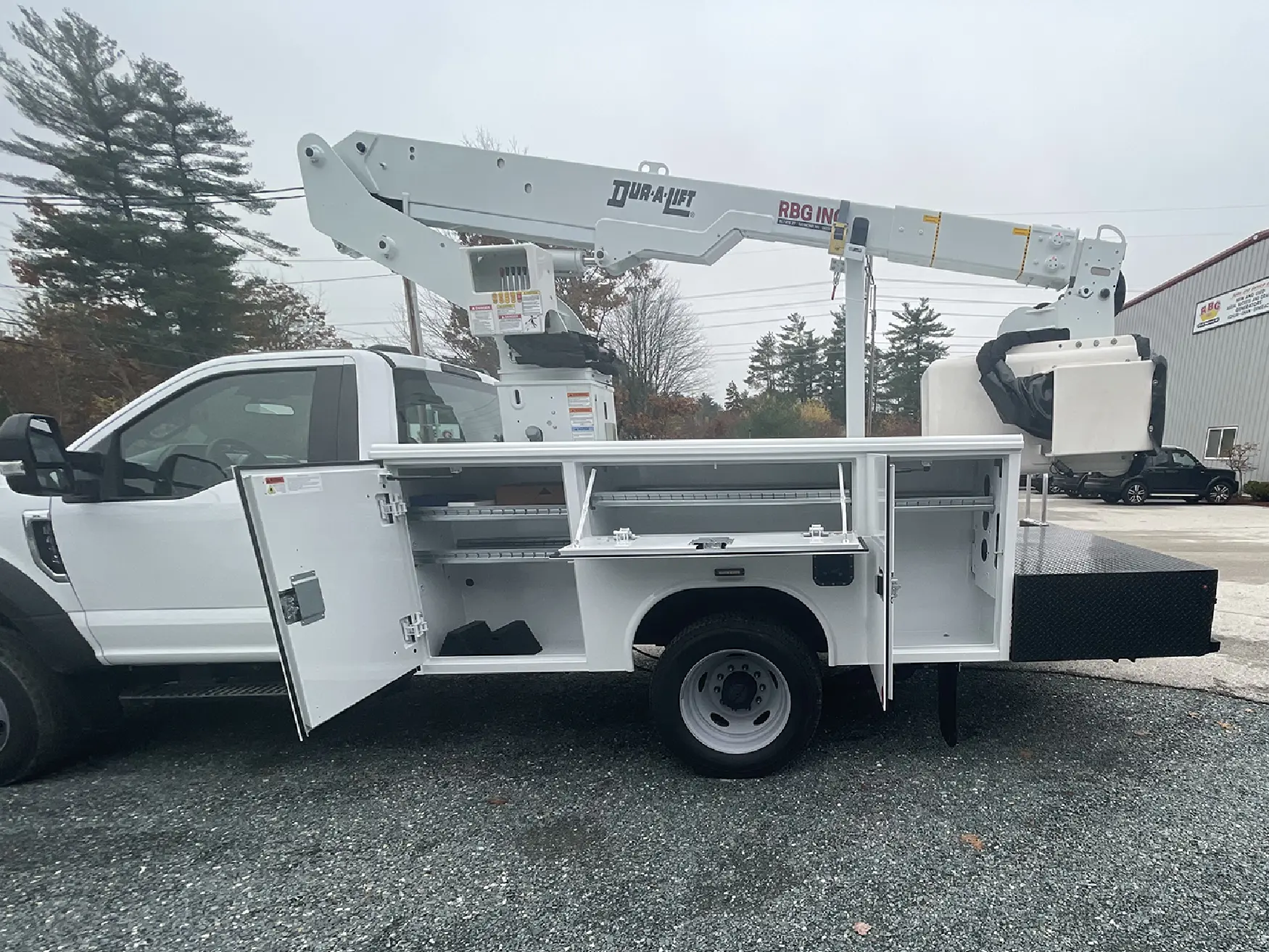

Reading Service Body, Classic II, 108 Series

• 108” long x 40” high x 93” wide.
• 60” CA with dual rear wheels.
• 40” compartment height
• 21.5” compartment depth
• 24.75” load bed height
• Steel Construction
• Gas fill cup
• Recessed LED exterior stop/tail/turn, backup and ICC lighting
• Automotive grade door gaskets
• Steel forward bulkhead
• Hidden stainless steel hinges
• Stainless steel automotive style latch
• Brackets for adjustable shelves in all compartments
• Steel treadplate floor
• White Powder Coat
• Taillight and Harness Adapter

• Shelving dividers shipped loose
