Sertex Fiberoptic Splicer

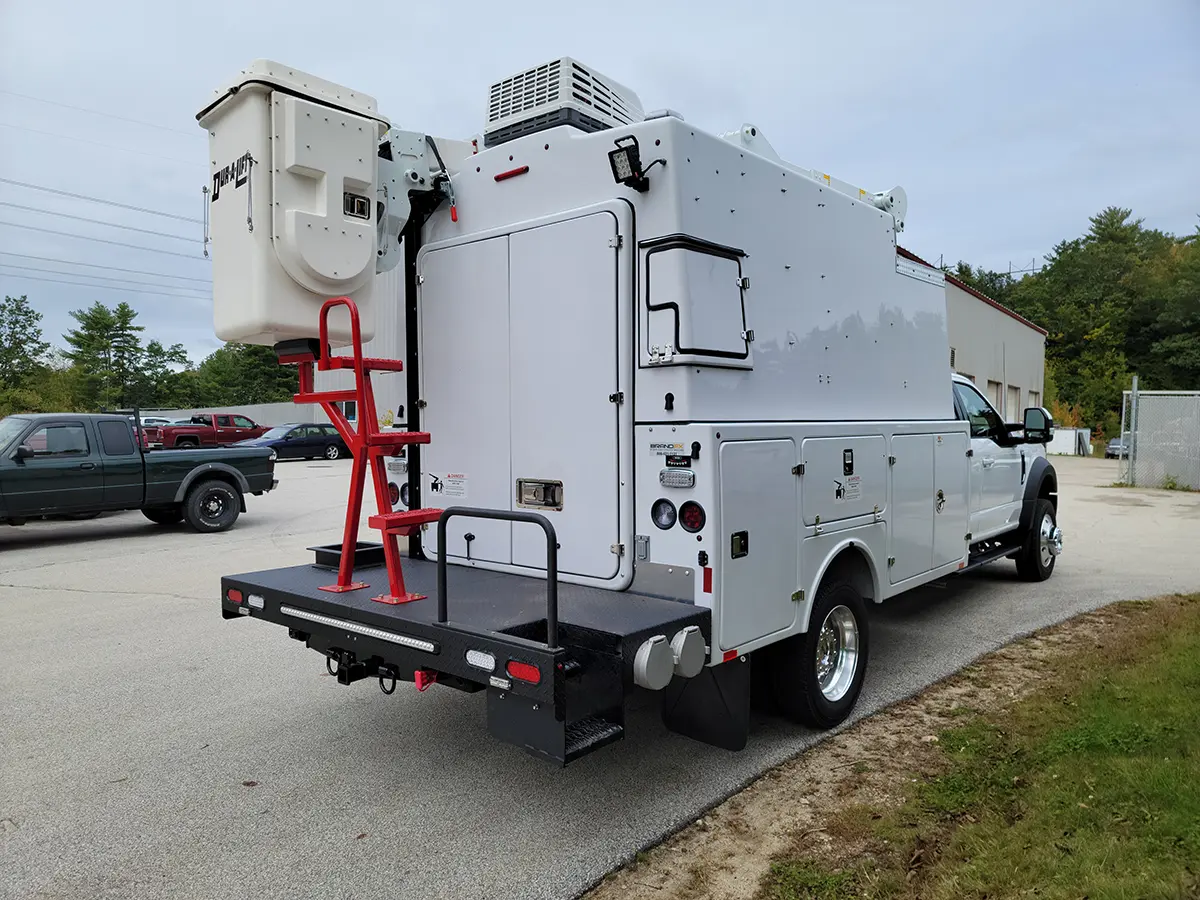

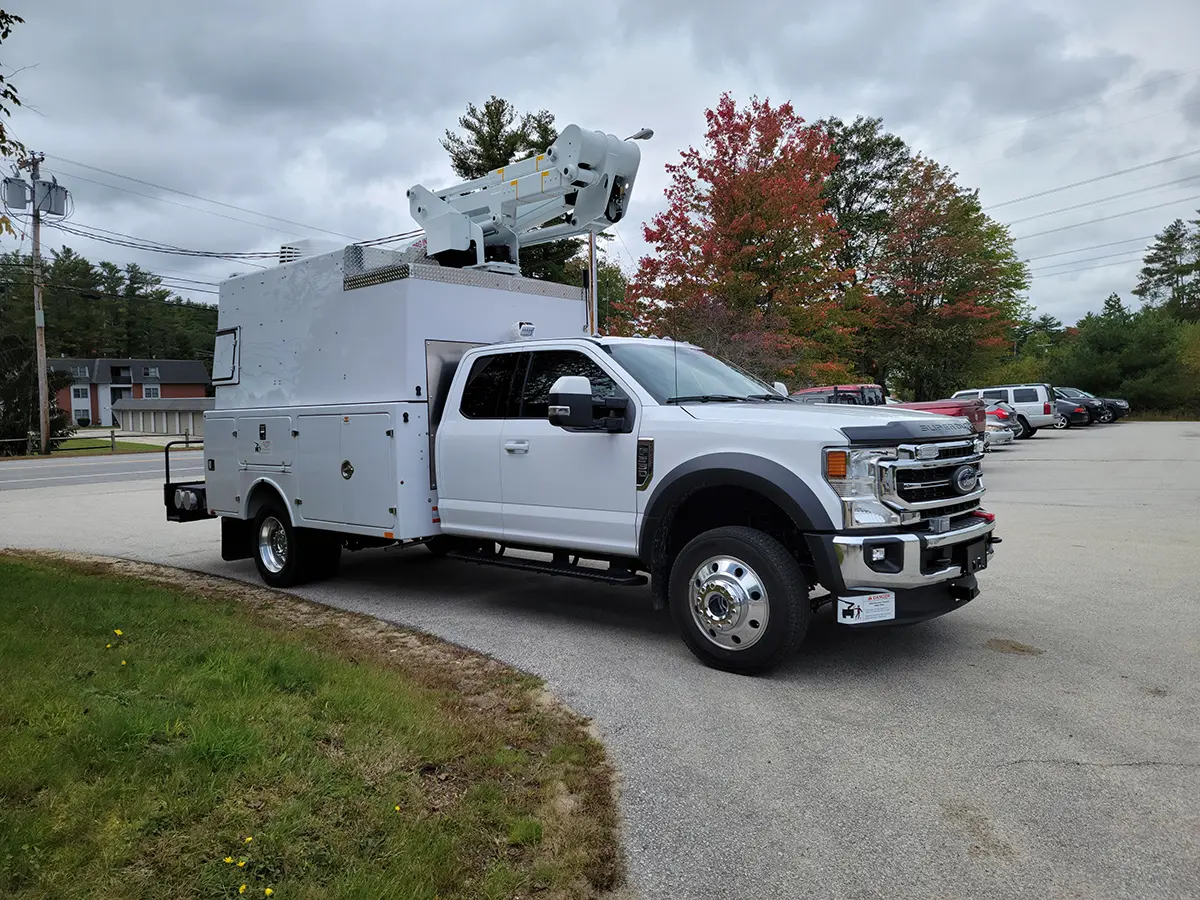

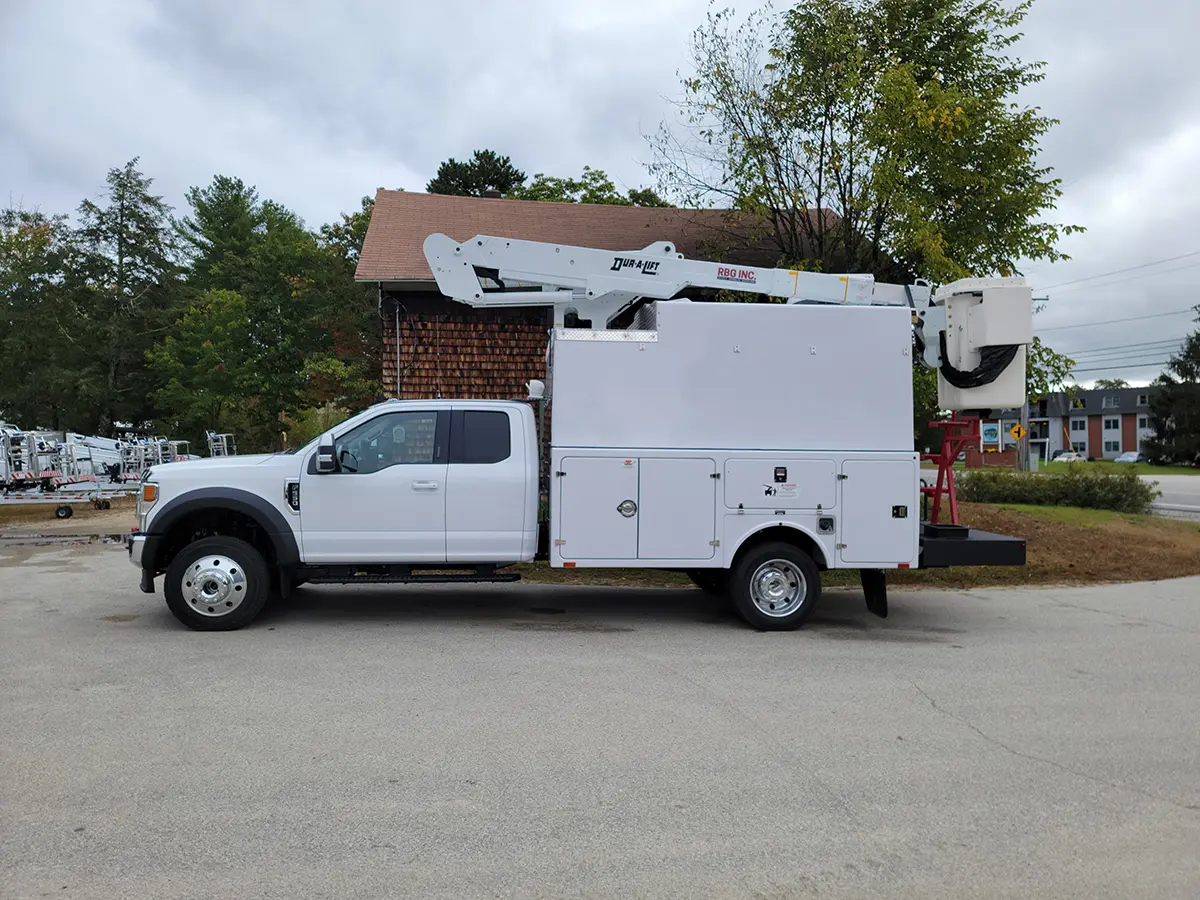

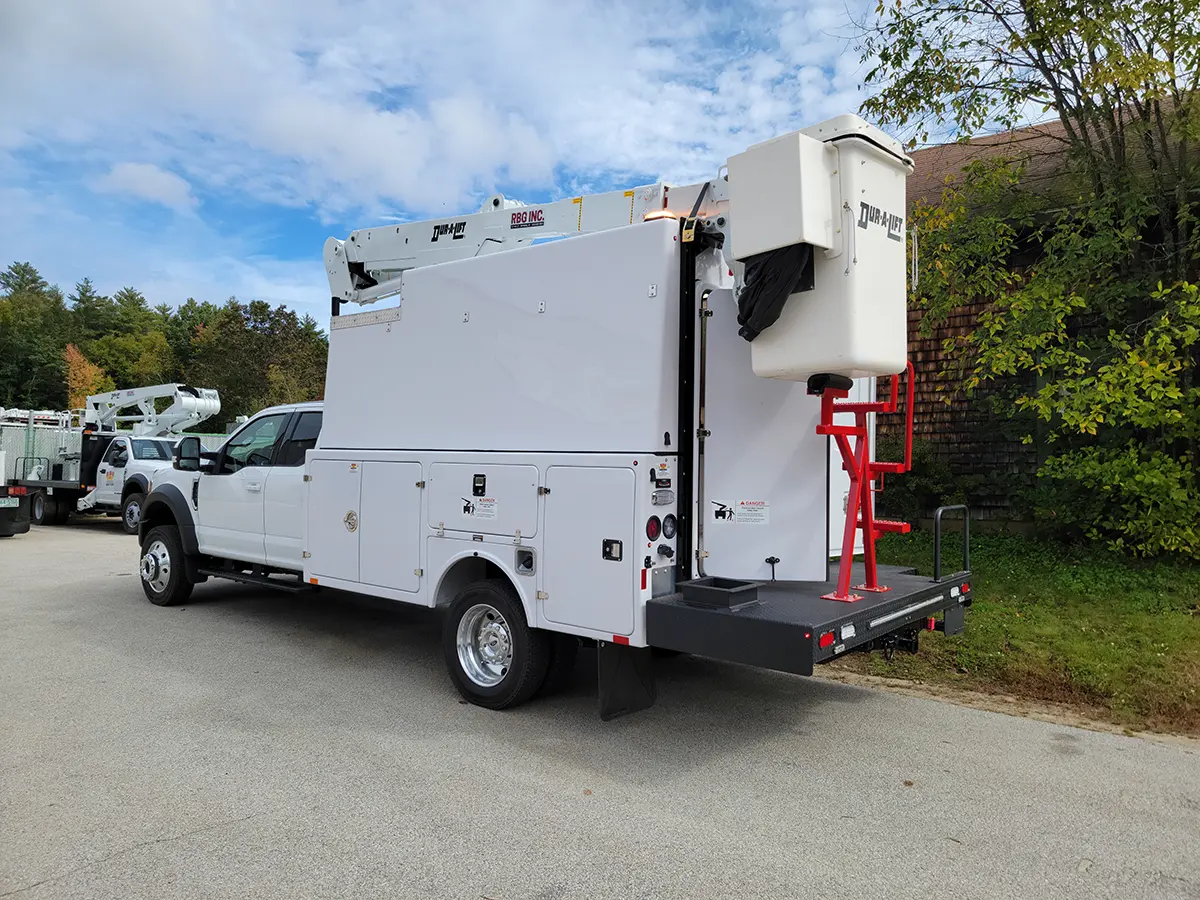

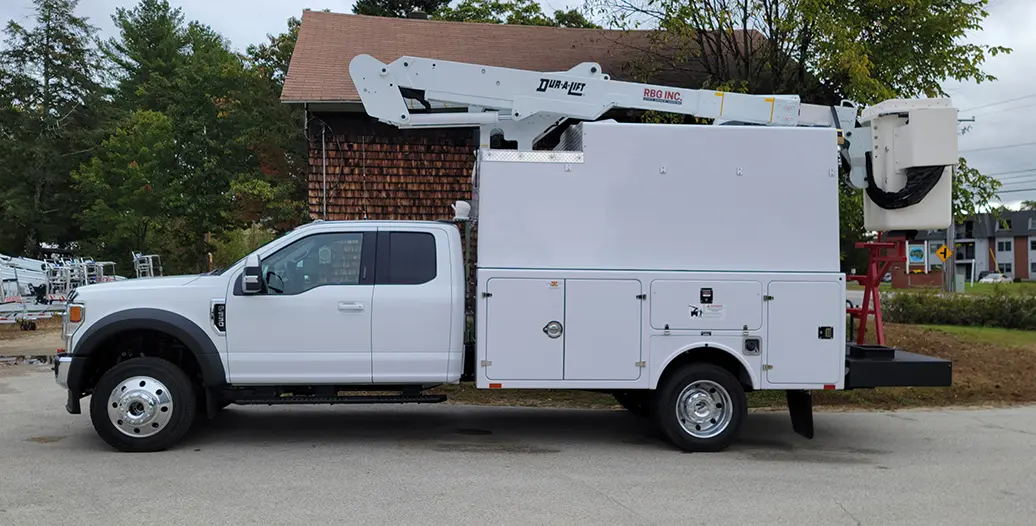

Dur-A-Lift DTA-35


  • Pedestal Riser, 43”
  • 35’ of platform height
  • 40’ of working height
  • 21’ side reach
  • Platform capacity of 350 lbs.
  • Bucket configured as follows:
  • 24” x 24” x 42”
  • End hung bucket
  • Walk thru bucket with door
  • Full Pressure-Joystick Controls
  • Emergency Power
  • Engine Start/Stop
  • Hard top bucket cover
  • Telescopic riser for cover
  • Bucket side drapes
  • 360 degree Continuous rotation.
  • Open center hydraulic system
  • Non-relube bearings used throughout.
  • Integral hydraulic oil reservoir with dual sight gauges
  • Emergency Power Insulated 12V DC hydraulic system.
  • Master / Slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue.
  • Lower remote controls mounted in rear compartment
  • Rear “OVER FRAME” torsion bar stabilization
  • Upper boom storage cradle with ratchet type tie down strap and tubular rubber platform support.
  • Body harness and lanyard.
  • Standard white urethane paint.
  • Two operator’s manuals and two service manuals.
  • ANSI A92.2 Data plate.
  • Internal hydraulic tank
  • Engine driven hydraulic pump
  • Open circuit operation
  • Emergency Brake Interlock

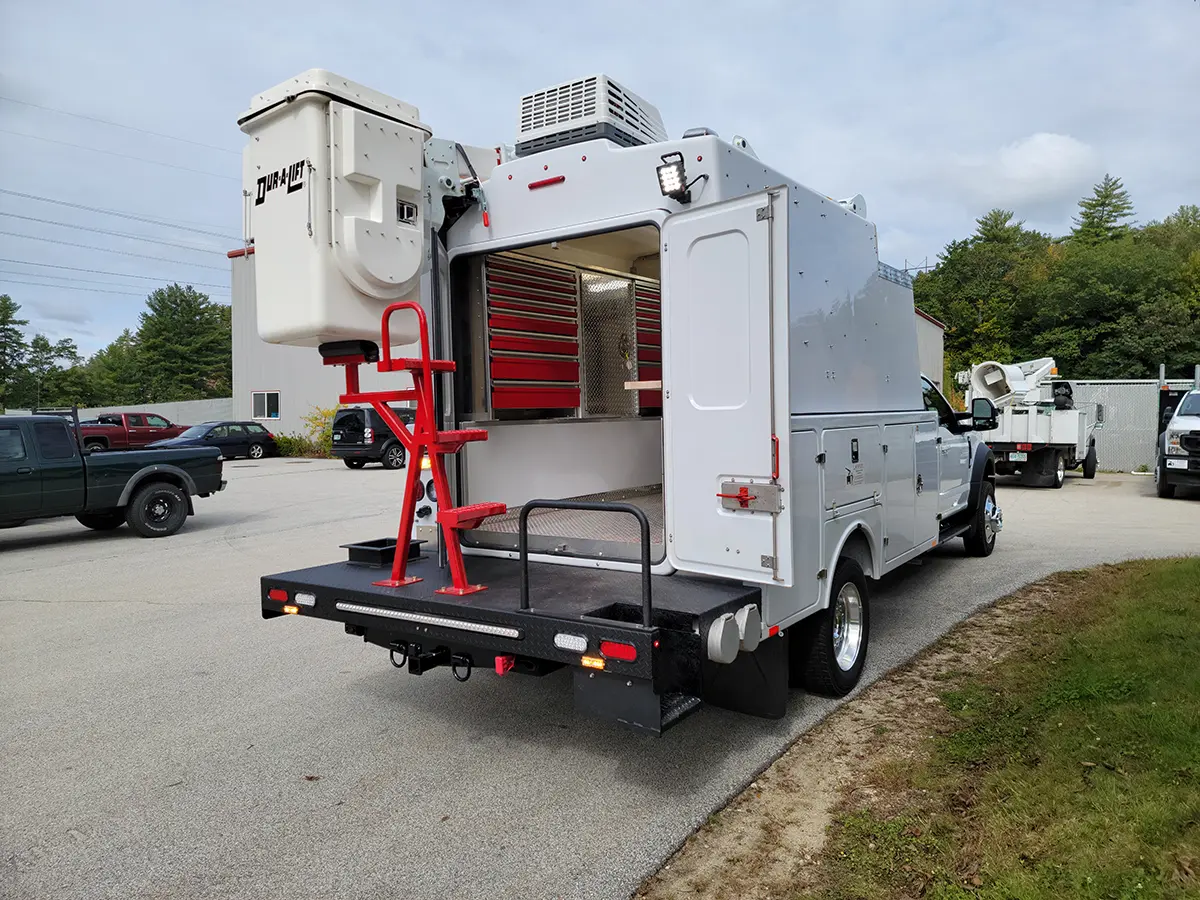

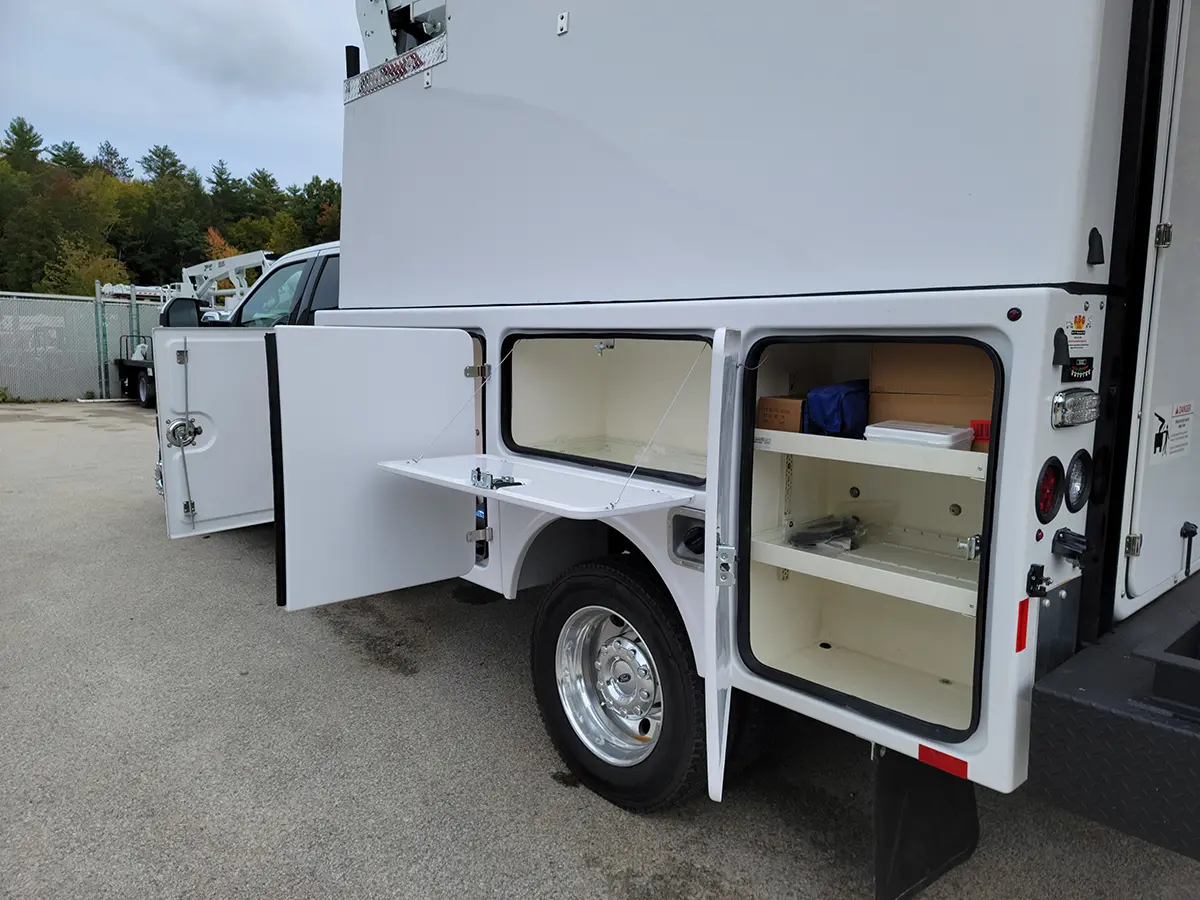

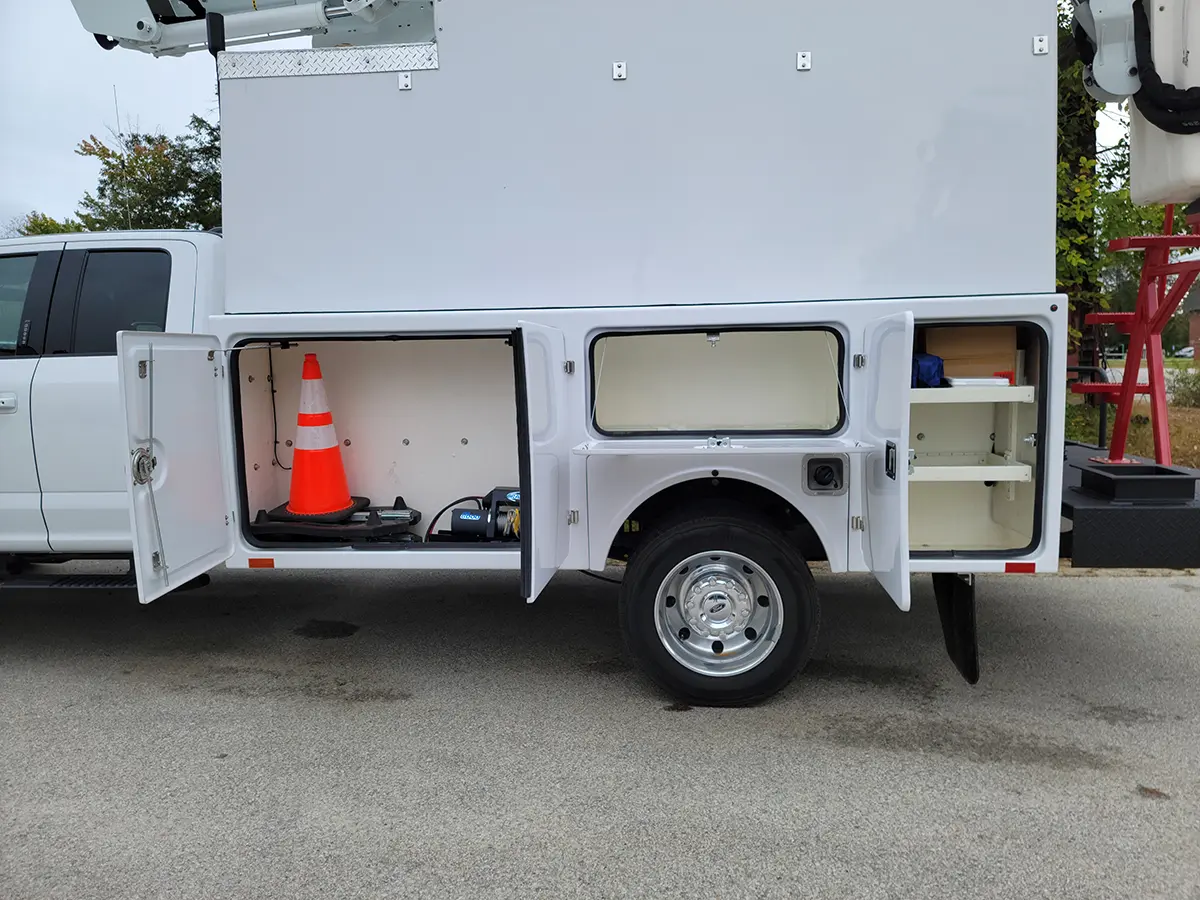

  • Brand FX Fiberglass Service Body, BFXB-84
  • 132” long x 42” high x 94” wide.
  • 84” CA with dual rear wheels.
  • 42” compartment height
  • 20” compartment depth
  • 25” body mounting height
  • Standard Features:
  • Vinyl rock guards
  • Gas fill cup
  • Aluminum understructure
  • White compartment interiors
  • Recessed LED exterior stop/tail/turn, backup and ICC lighting
  • Automotive grade door gaskets
  • Aluminum forward bulkhead
  • Aluminum tailskirt
  • Stainless steel hinges and hardware
  • Stainless steel automotive style rotary latch
  • LED Flexglo Compartment Lighting
  • One piece molded doors
  • Recessed door seal system
  • Flow thru ventilation system
  • Aluminum Treadplate floor
  • Forward area to be “notched” to accommodate aerial device













Build Me This Truck

Fill out the form below and a member of our sales team will be in contact regarding your quote! Please add any changes or requests to the Additional Notes.
